WS
Category:WS
Keywords:M12 sensor harnesses, M16 industrial equipment harnesses, 5015 military-grade circular connector harnesses, SF bayonet quick-connect waterproof harnesses, and WS snap-lock waterproof harnesses—five core product lines. All feature industrial-grade PUR/PVC jacketed cables with oil and drag resistance, IP67 water protection rating, and an operating temperature range of -40°C to +85°C.
Details

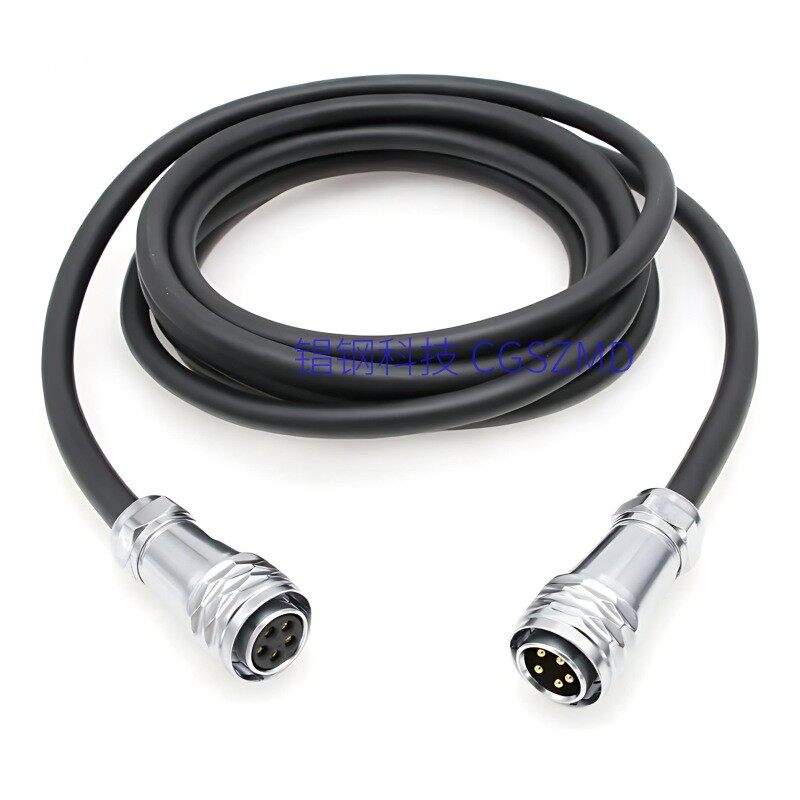

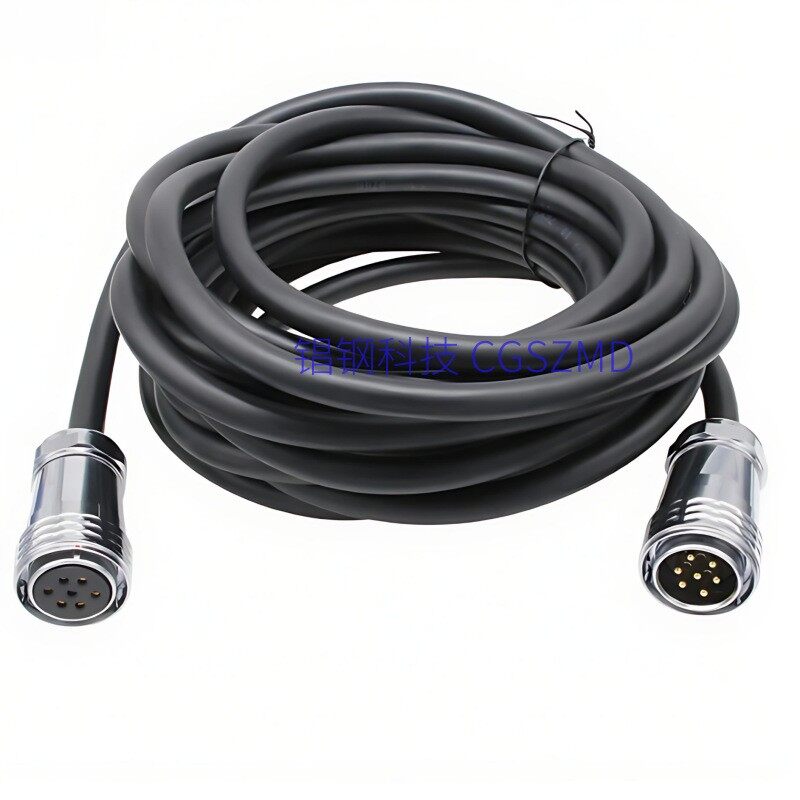

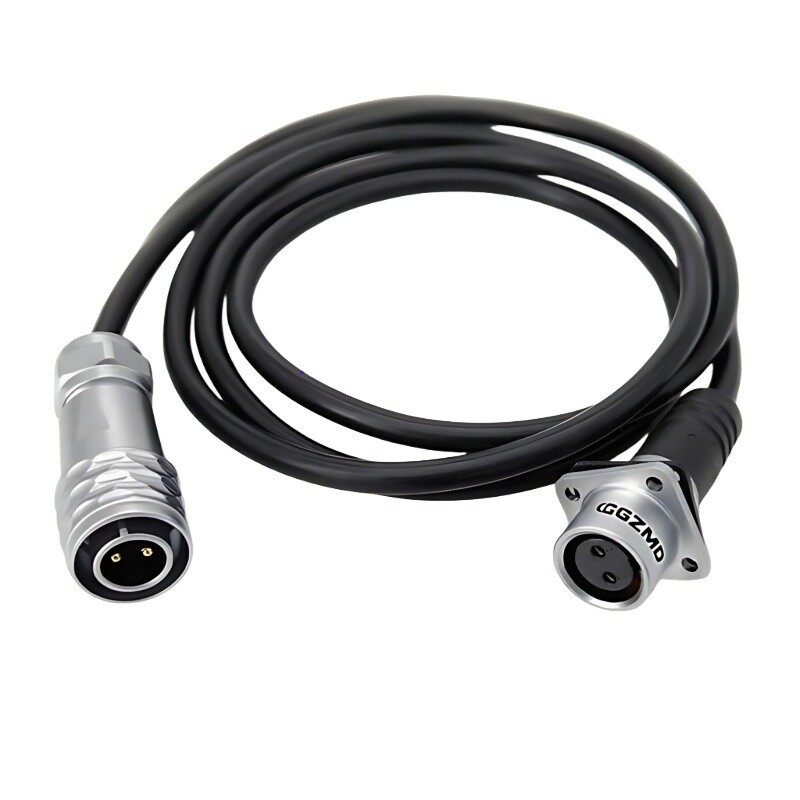

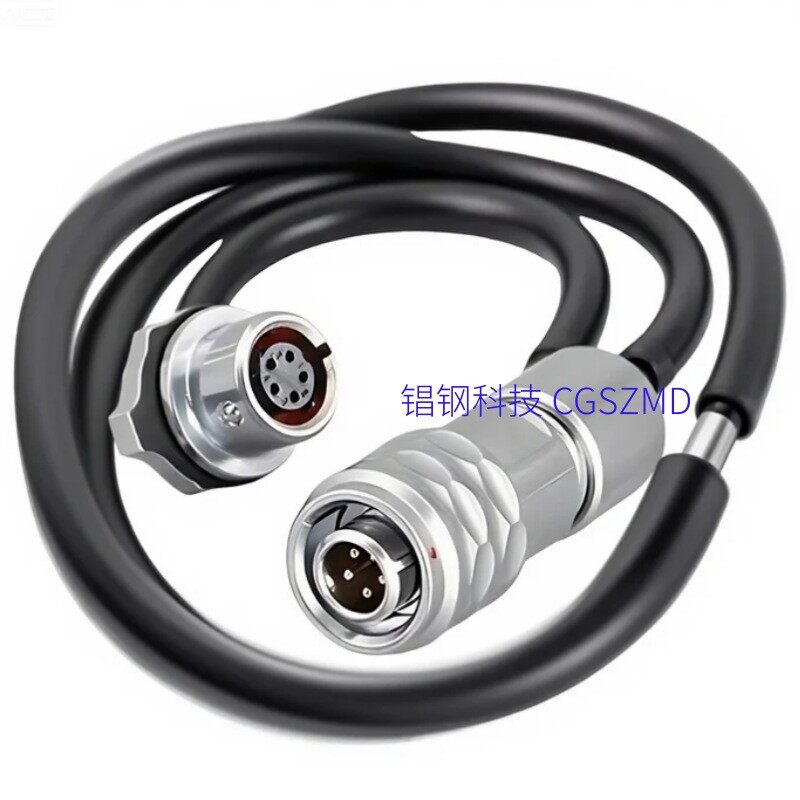

WS series snap-lock waterproof connector harnesses, certified to CE/ROHS and IP67. Features snap-lock waterproof cable. Available in 2 to 7 pin configurations, with a cable outer diameter of approximately 7.0-8.0 mm. Operating temperature range: -25°C to 85°C. Rated voltage: AC 380V/DC500V. One-touch snap-lock design with IP67 protection rating, ideal for outdoor waterproof connection applications.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Model | WS-2-pin Snap-in Harness, WS-3-pin Snap-in Harness, WS-4-pin Snap-in Harness, WS-7-pin Snap-in Harness | Use wire | 2-core × 0.75mm² snap-on waterproof cable, 3-core × 0.75mm² snap-on waterproof cable, 4-core × 0.5mm² snap-on signal cable, 7-core × 0.3mm² functional cable |
| Certifications | CE/ROHS IP67 Certified | Use wire | 2-core × 0.75mm² snap-on waterproof cable, 3-core × 0.75mm² snap-on waterproof cable, 4-core × 0.5mm² snap-on signal cable, 7-core × 0.3mm² functional cable |
| Use wire | 2-core × 0.75mm² snap-on waterproof cable, 3-core × 0.75mm² snap-on waterproof cable, 4-core × 0.5mm² snap-on signal cable, 7-core × 0.3mm² functional cable | Operating Temperature | -25°C~85°C |
| Cable Outer Diameter | Approx. 7.0mm,7.2mm,7.5mm,8.0mm | Carrying Temperature | -25°C~85°C |
| Operating Temperature | -25°C~85°C | Wire Color | Red/Blue, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green, Red/Black/Yellow/White/Blue/Brown |
| Rated Voltage | AC 380V/DC 500V | Wire Color | Red/Blue, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green, Red/Black/Yellow/White/Blue/Brown |
| Wire Color | Red/Blue, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green, Red/Black/Yellow/White/Blue/Brown |
