SF
Category:SF
Keywords:M12 sensor harnesses, M16 industrial equipment harnesses, 5015 military-grade circular connector harnesses, SF bayonet quick-connect waterproof harnesses, and WS snap-lock waterproof harnesses—five core product lines. All feature industrial-grade PUR/PVC jacketed cables with oil and drag resistance, IP67 water protection rating, and an operating temperature range of -40°C to +85°C.
Details

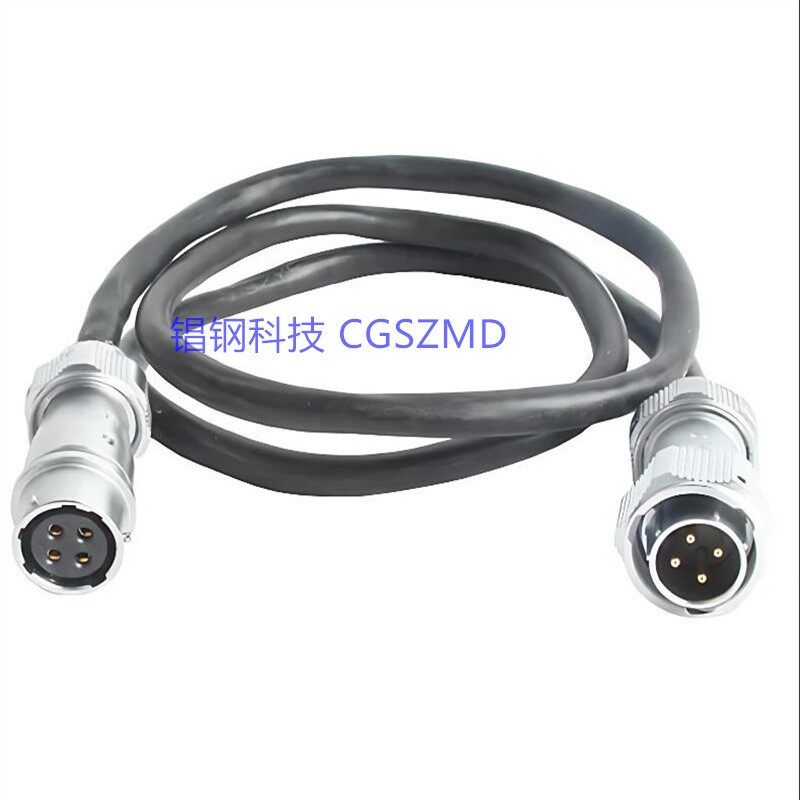

SF series bayonet quick-connect harnesses feature CE/ROHS and IP67 certifications with a quick-plug cable design. Available in 2 to 4 pin configurations, with an outer diameter of approximately 6.0-6.5mm. Operating temperature range: -20°C to 80°C; rated voltage: AC 300V/DC400V. The three-prong bayonet quick-connect design ensures fast and efficient installation.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Model | SF-2 Pin Bayonet Connector Harness, SF-3 Pin Bayonet Connector Harness, SF-4 Pin Bayonet Connector Harness | Use wire | 2-core × 0.5-sq mm quick-connect cable, 3-core × 0.5-sq mm quick-connect cable, 4-core × 0.3-sq mm cable |
| Certifications | CE/ROHS IP67 Certified | Use wire | 2-core × 0.5-sq mm quick-connect cable, 3-core × 0.5-sq mm quick-connect cable, 4-core × 0.3-sq mm cable |
| Use wire | 2-core × 0.5-sq mm quick-connect cable, 3-core × 0.5-sq mm quick-connect cable, 4-core × 0.3-sq mm cable | Operating Temperature | -20°C~80°C |
| Cable Outer Diameter | Approximately 6.0mm, to 6.2mm, to 6.5 mm | Carrying Temperature | -20°C~80°C |
| Operating Temperature | -20°C~80°C | Wire Color | Red/Black, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green |
| Rated Voltage | AC 300V/DC 400V | Wire Color | Red/Black, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green |
| Wire Color | Red/Black, Brown/Blue/Yellow-Green, Red/Black/Yellow/Green |
