M12
Category:M12
Keywords:M12 sensor harnesses, M16 industrial equipment harnesses, 5015 military-grade circular connector harnesses, SF bayonet quick-connect waterproof harnesses, and WS snap-lock waterproof harnesses—five core product lines. All feature industrial-grade PUR/PVC jacketed cables with oil and drag resistance, IP67 water protection rating, and an operating temperature range of -40°C to +85°C.
Details

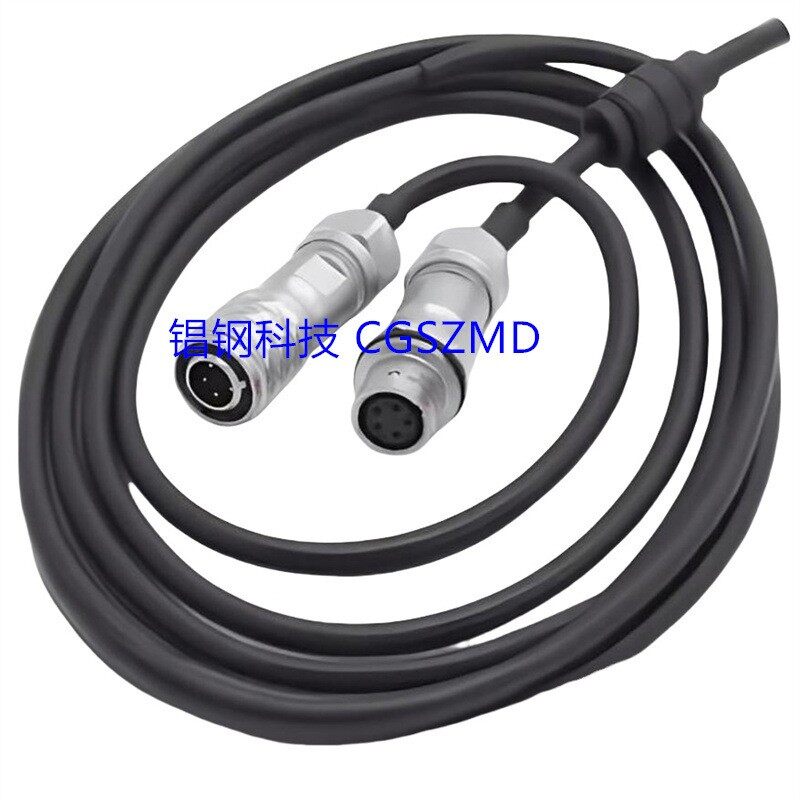

M12 Series Circular Connector Harnesses feature CE/ROHS industrial-grade certification and PUR shielded cabling. Available in A-coded 2-5 pin straight configurations, D-coded PROFINET, and X-coded Gigabit Ethernet variants. Cable outer diameter: approximately 4.5-6.5mm; operating temperature range: -40°C to 85°C. Ideal for industrial automation and sensor connections.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Model | M12 A-2 Pin Straight, M12 A-3 Pin Straight, M12 A-4 Pin Straight, M12 A-5 Pin Straight, M12 D-4 Pin PROFINET, M12 X-8 Pin Gigabit | Use wire | 2-core × 0.34-sq mm PUR shielded cable, 3-core × 0.34-sq mm PUR shielded cable, 4-core × 0.34-sq mm PUR shielded cable, 5-core × 0.25-sq mm PUR shielded cable, 4-core Cat 5e shielded twisted pair cable, 8-core Cat 6 shielded twisted pair cable |
| Certifications | CE/ROHS Industrial Grade Certified, CE/ROHS Industrial Grade Certified, CE/ROHS Industrial Grade Certified, CE/ROHS Industrial Grade Certified, CE/ROHS/EtherCAT Certified, CE/ROHS Industrial Grade 10G Certified | Use wire | 2-core × 0.34-sq mm PUR shielded cable, 3-core × 0.34-sq mm PUR shielded cable, 4-core × 0.34-sq mm PUR shielded cable, 5-core × 0.25-sq mm PUR shielded cable, 4-core Cat 5e shielded twisted pair cable, 8-core Cat 6 shielded twisted pair cable |
| Use wire | 2-core × 0.34-sq mm PUR shielded cable, 3-core × 0.34-sq mm PUR shielded cable, 4-core × 0.34-sq mm PUR shielded cable, 5-core × 0.25-sq mm PUR shielded cable, 4-core Cat 5e shielded twisted pair cable, 8-core Cat 6 shielded twisted pair cable | Operating Temperature | -40°C~85°C |
| Cable Outer Diameter | Approx. 4.5mm,4.7mm,5.0mm,5.2mm,6.0mm,6.5mm | Carrying Temperature | -40°C~85°C |
| Operating Temperature | -40°C~85°C | Wire Color | Brown/Blue, Brown/Blue/Black, Brown/Blue/Black/White, Brown/Blue/Black/White/, White-Orange/Orange/White/Green, White-Orange/Orange/White/Green/White-Blue/Blue/Brown/Brown |
| Rated Voltage | AC 250V/DC 300V,AC 250V/DC 300V,AC 250V/DC 300V,AC 250V/DC 300V,DC 60V,DC 6 0V | Wire Color | Brown/Blue, Brown/Blue/Black, Brown/Blue/Black/White, Brown/Blue/Black/White/, White-Orange/Orange/White/Green, White-Orange/Orange/White/Green/White-Blue/Blue/Brown/Brown |
| Wire Color | Brown/Blue, Brown/Blue/Black, Brown/Blue/Black/White, Brown/Blue/Black/White/, White-Orange/Orange/White/Green, White-Orange/Orange/White/Green/White-Blue/Blue/Brown/Brown |
