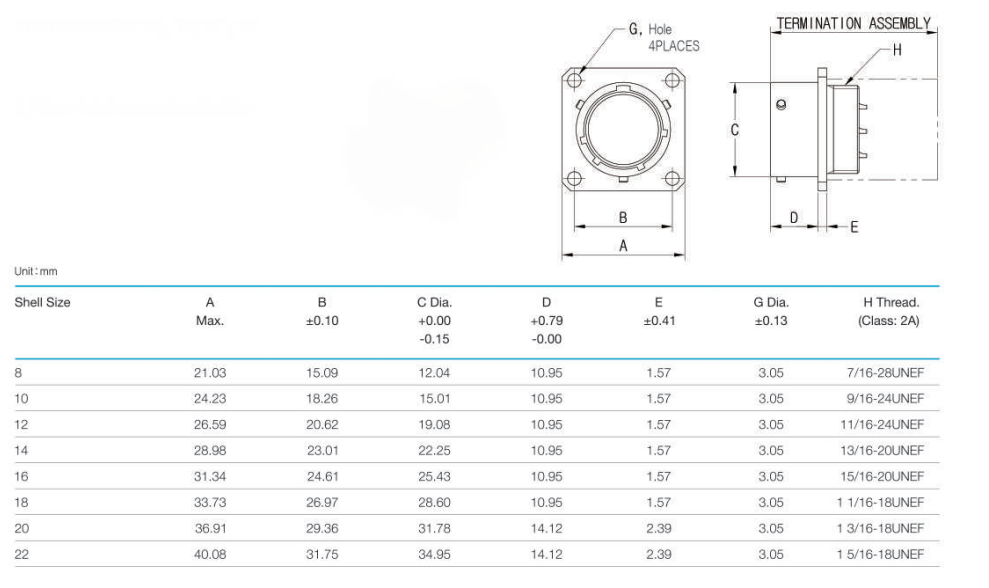

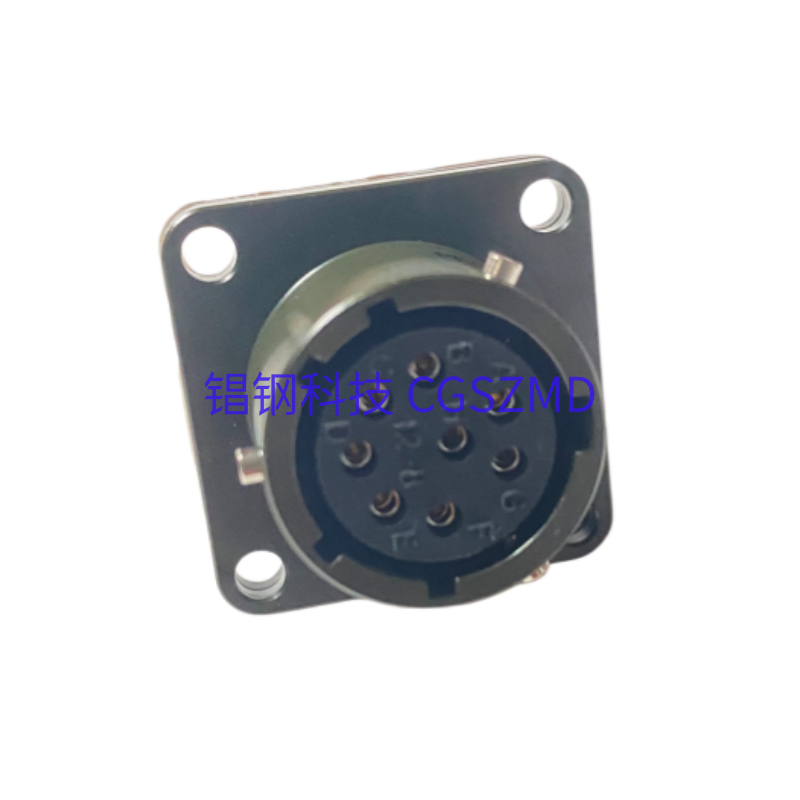

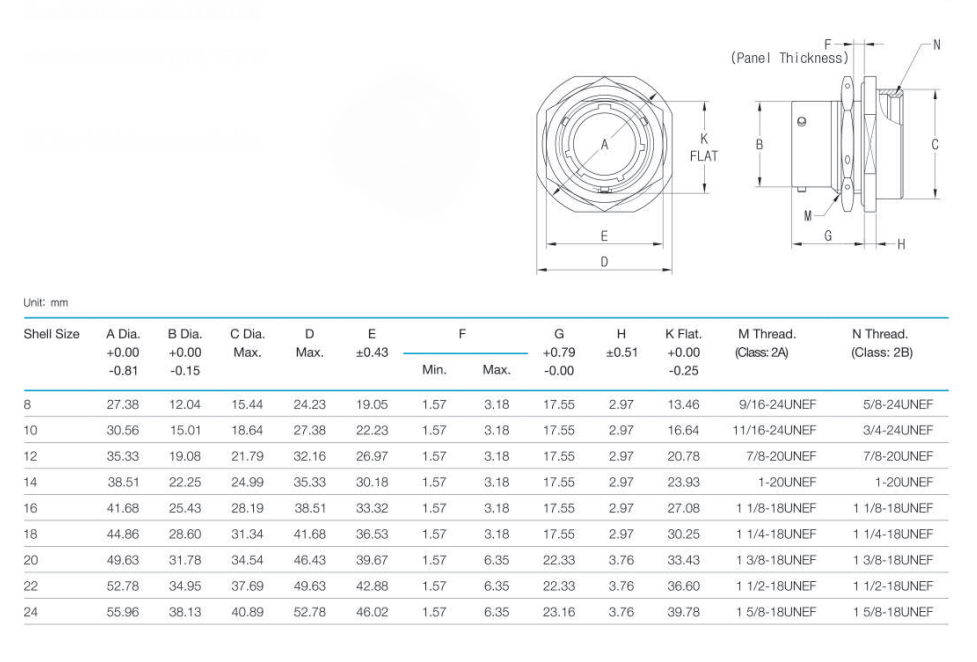

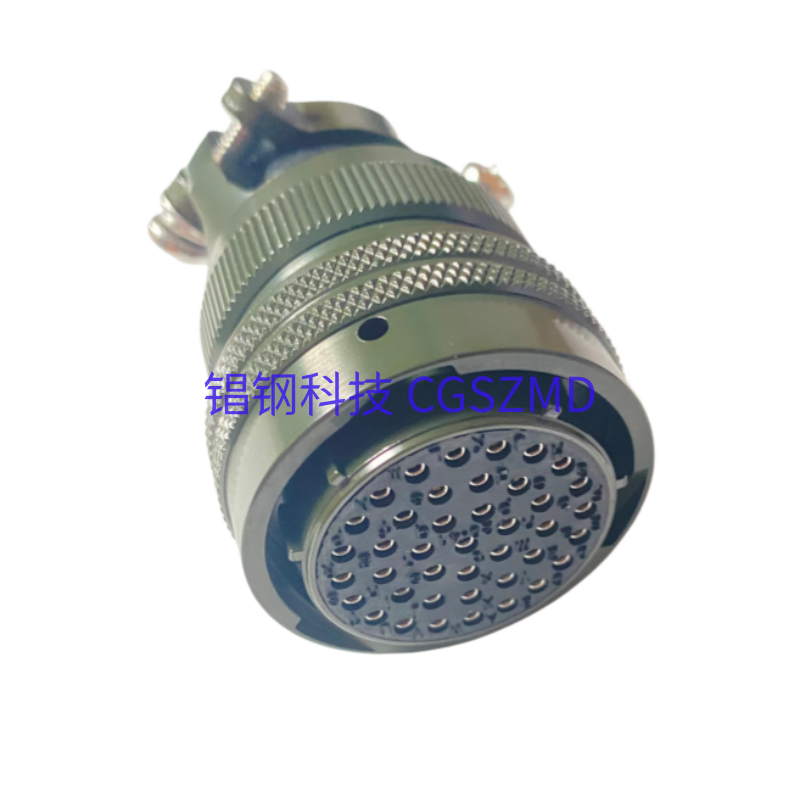

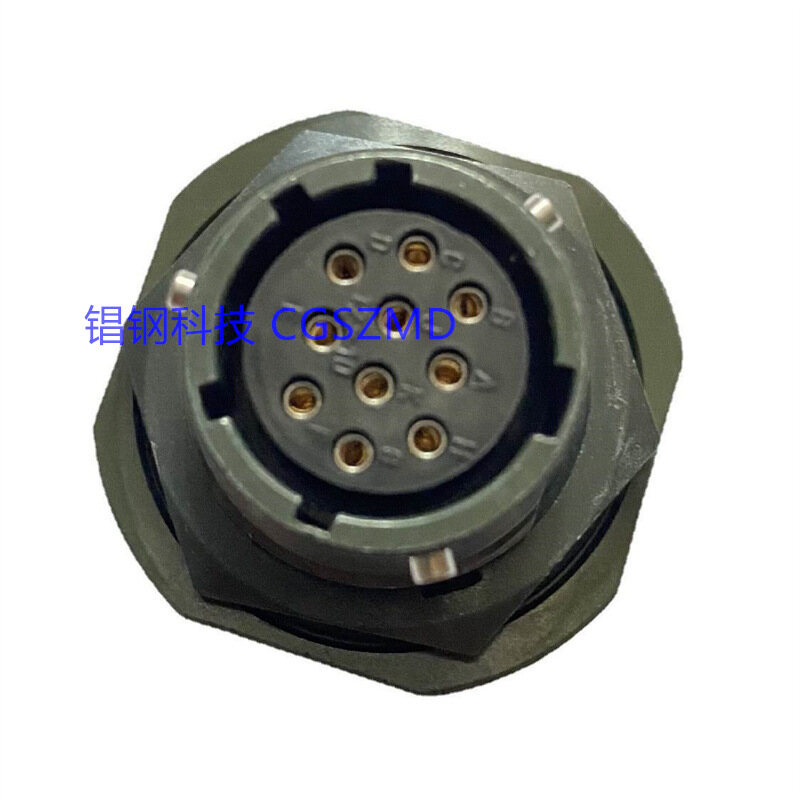

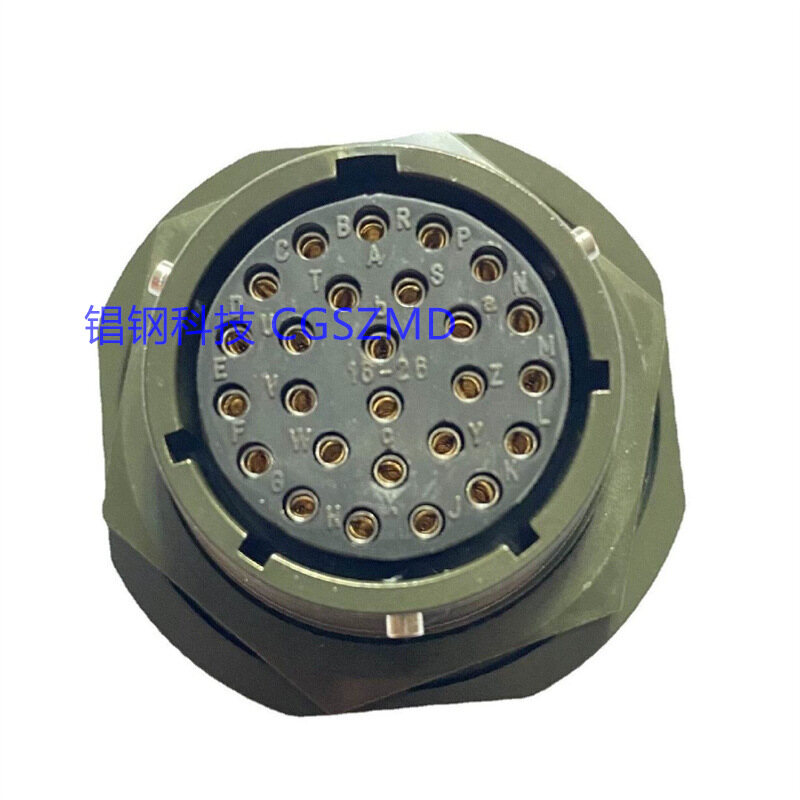

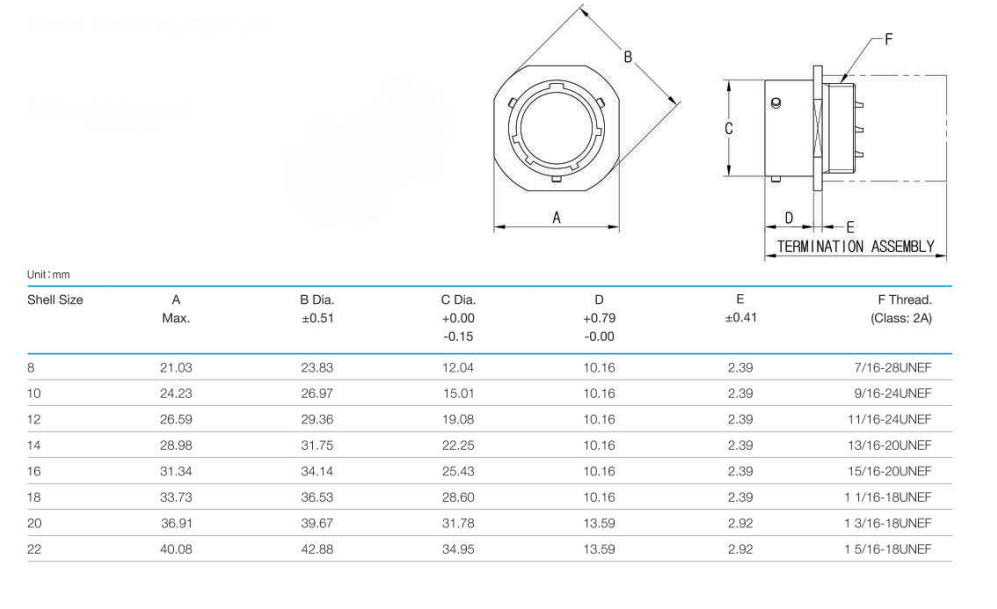

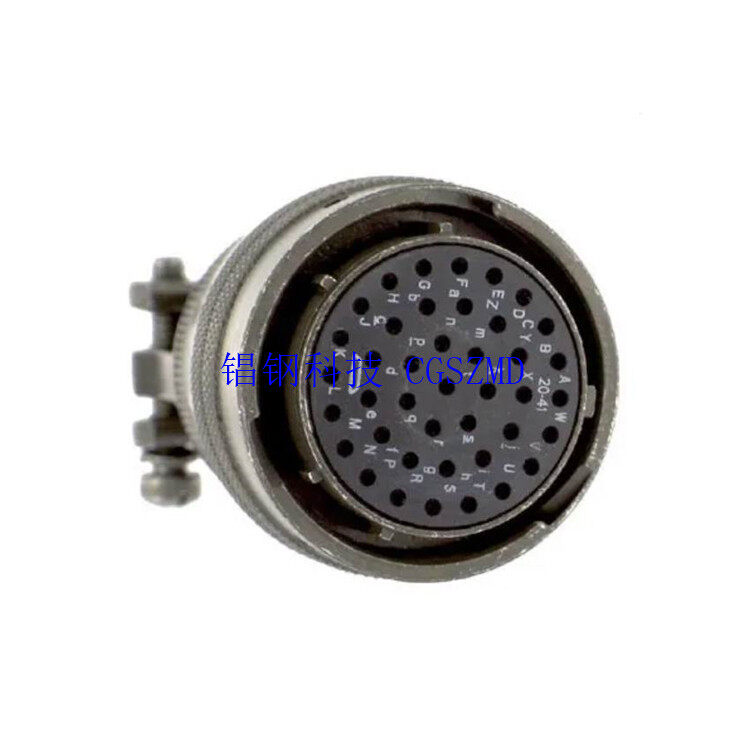

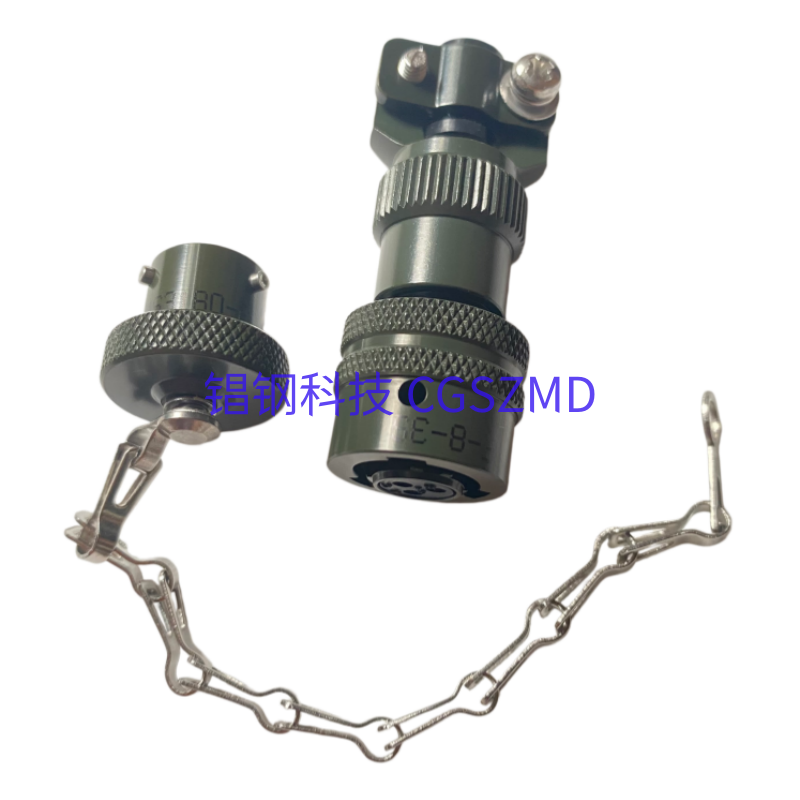

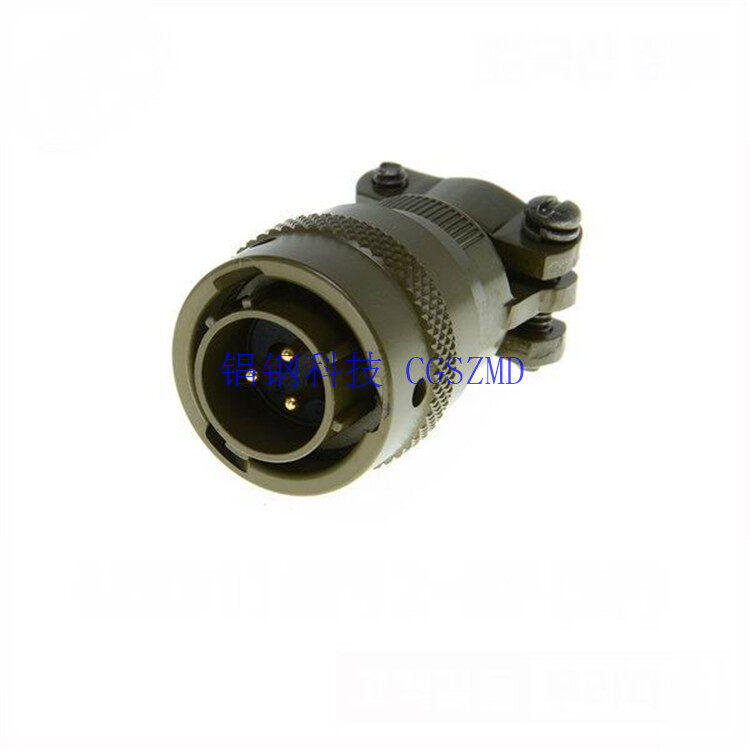

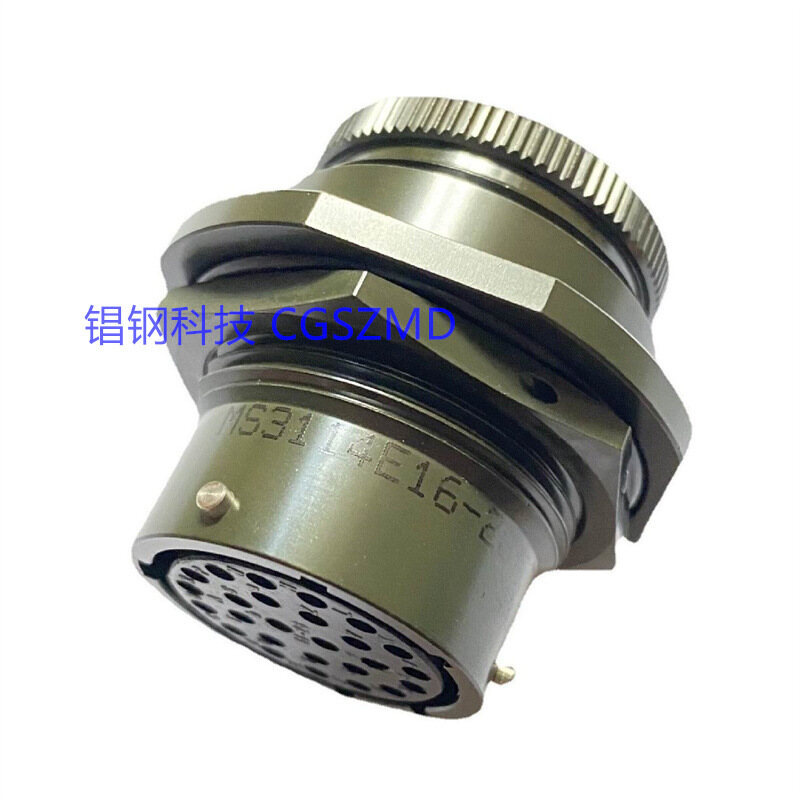

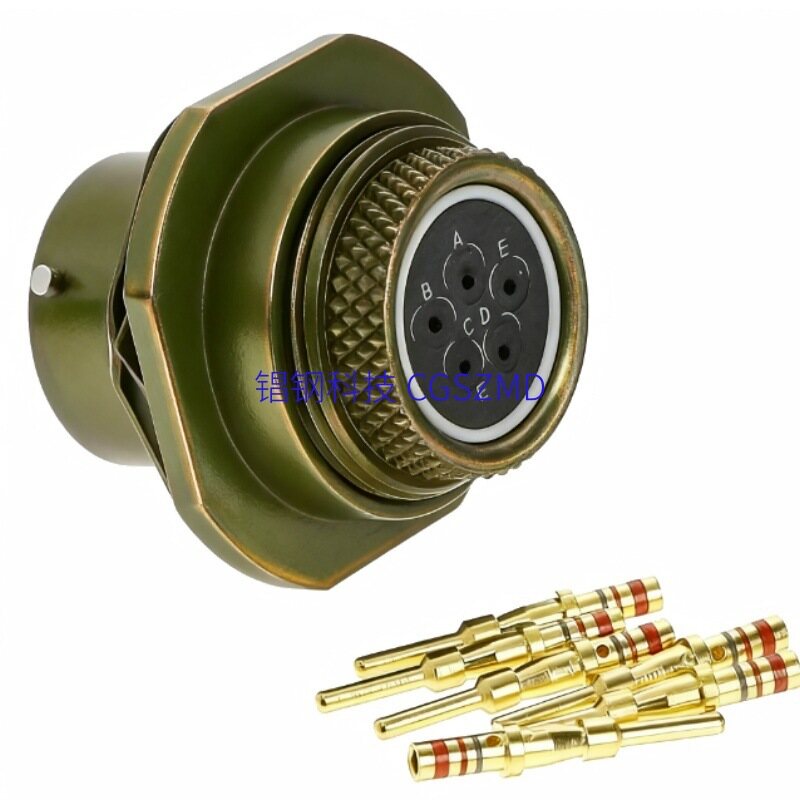

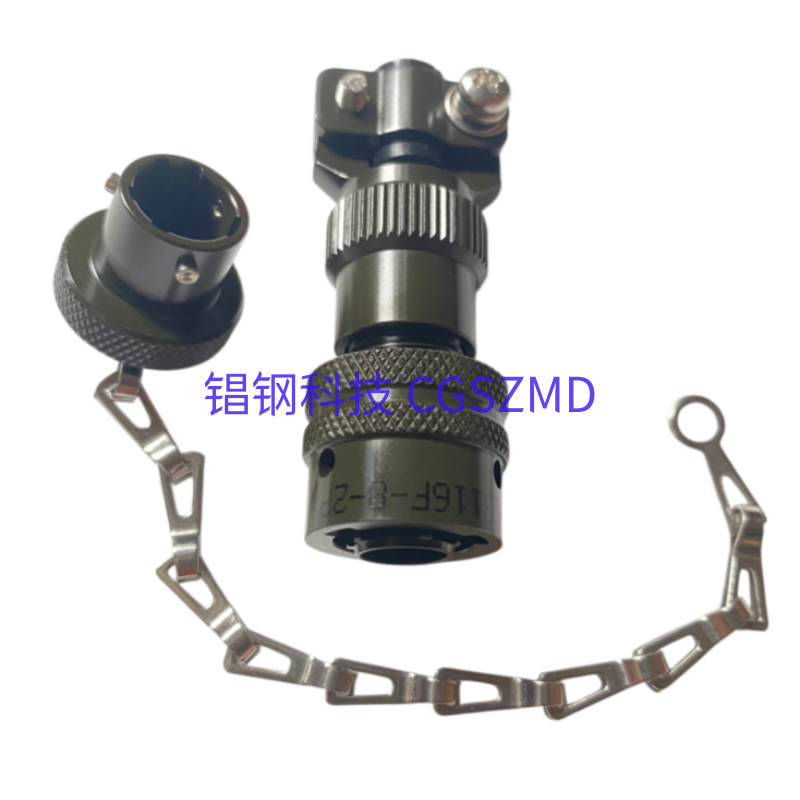

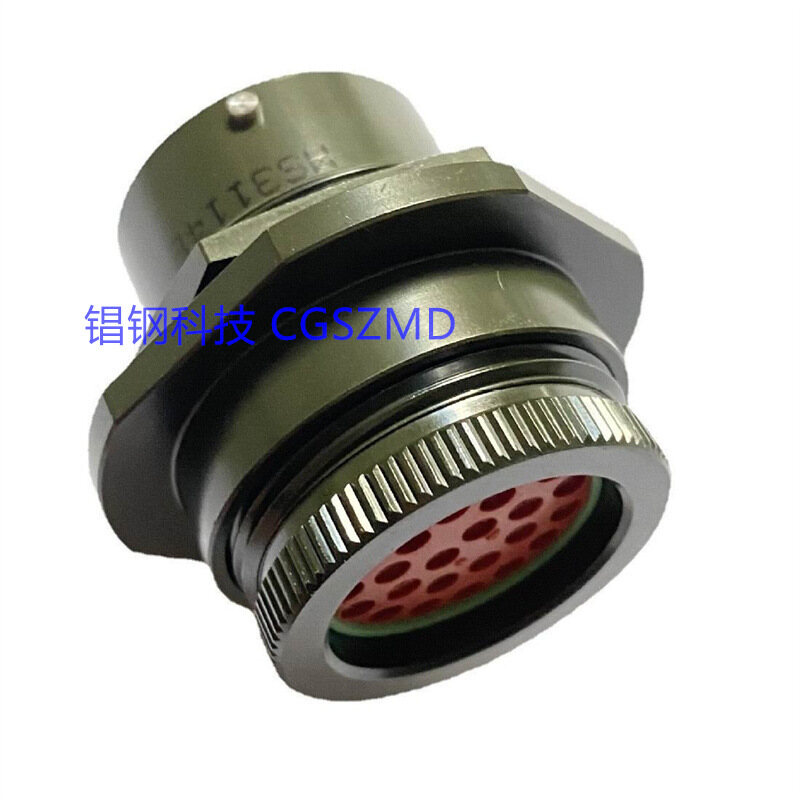

MIL-DTL-26482 (formerly MIL-C-26482) compact military circular connectors, available in Series I and Series II. These lightweight bayonet-style connectors are fully interchangeable with domestic and international equivalents of the same specifications. Our factory supplies MIL-DTL-26482 (GJB598) military-grade circular aviation connectors, including Series I welding versions and Series II rear-release crimp versions. Product lineup includes: MS3110 panel-mount receptacles, MS3112 flange-mount receptacles, MS3114 nut-locking receptacles, MS3116 straight plugs, and MS3{8] wall-mount bulkhead receptacles. Shell sizes range from 8# to 24#, with contact counts from 2 to 61. Available with pin/socket male/female configurations, supporting solder, crimp, and PCB termination options. Optional RFI shielding and IP67 sealing are available. Shell materials include nickel-plated aluminum alloy or cadmium-plated olive drab. Operating temperature range: -55°C to 125°C. Compatible with PT and KPT series. Widely used in military equipment, aerospace, rail transit, and industrial high-reliability signal and power connections. We support sample testing, bulk orders, and custom cable manufacturing. Ideal for airborne and vehicular small-to-medium equipment signal and power interconnects. Series I: Basic bayonet locking structure. Series II: Upgraded version featuring standard scoop-proof protection for blind-mate assembly, preventing pin damage during mating. Shell Specifications: Available in 9 sizes (08#, 10#, 12#, 14#, 16#, 18#, 20#, 22#, 24#). Mounting Types: Flange-mount bulkhead receptacle, nut-locking receptacle, straight plug, and 90° angled plug. Shell Materials: High-strength aluminum alloy, stainless steel, or composite materials. Surface Finishes: Cadmium-plated olive drab, chemical nickel plating, black zinc-nickel passivation, or stainless steel passivation. Features salt spray resistance and vibration/shock tolerance. Multi-layer sealing in fully mated state provides dust, moisture, and oil resistance. Internal multi-key anti-mate structure prevents incorrect mating between different shell codes. Diverse contact arrangements available, compatible with power, analog signals, differential signals, and coaxial contacts. Applications: Airborne equipment, UAVs, automotive military electronics, radar subsystems, rail transit control units, high-end industrial equipment, measurement instruments, and marine support systems. Fully compatible and interchangeable with major Western brands' similar products. ⚠️ Important Distinction: MS3100, MS3106, and MS3108 belong to the MIL-DTL-5015 threaded series, not 26482. The following list displays only native models under the MIL-DTL-26482 standard. **Mainstream Shell Models (MIL-DTL-26482 Standard System)** **Series I (Basic Bayonet, No Scoop-Proof Structure)** MS3110 (Square Flange Bulkhead Receptacle), MS3111 (Nut-Locking Receptacle), MS3112 (Straight Plug), MS3116 (90° Angled Plug) Part Numbers: MS3110E08-33PN, MS3110E10-6PN, MS3110E12-10PN, MS3110E14-12PN, MS3110E16-26PN, MS3110E18-32PN, MS3110E20-41PN, MS3110E22-55PN, MS3110E24-61PN MS3111E08-33SN, MS3111E10-6SN, MS3111E12-10SN, MS3111E14-12SN, MS3111E16-26SN, MS3111E18-32SN, MS3111E20-41SN, MS3111E22-55SN, MS3111E24-61SN MS3112E08-33PN, MS3112E10-6PN, MS3112E12-10PN, MS3112E14-12PN, MS3112E16-26PN, MS3112E18-32PN, MS3112E20-41PN, MS3112E22-55PN, MS3112E24-61PN MS3116E08-33PN, MS3116E10-6PN, MS3116E12-10PN, MS3116E14-12PN, MS3116E16-26PN, MS3116E18-32PN, MS3116E20-41PN, MS3116E22-55PN, MS3116E24-61PN **Series II (Scoop-Proof Bayonet, Mainstream Upgraded Model)** MS3470 (Square Flange Bulkhead Receptacle), MS3471 (Nut-Locking Receptacle), MS3472 (Straight Plug), MS3476 (90° Angled Plug) Part Numbers: MS3470L08-33PN, MS3470L10-6PN, MS3470L12-10PN, MS3470L14-12PN, MS3470L16-26PN, MS3470L18-32PN, MS3470L20-41PN, MS3470L22-55PN, MS3470L24-61PN MS3471L08-33SN, MS3471L10-6SN, MS3471L12-10SN, MS3471L14-12SN, MS3471L16-26SN, MS3471L18-32SN, MS3471L20-41SN, MS3471L22-55SN, MS3471L24-61SN MS3472L08-33PN, MS3472L10-6PN, MS3472L12-10PN, MS3472L14-12PN, MS3472L16-26PN, MS3472L18-32PN, MS3472L20-41PN, MS3472L22-55PN, MS3472L24-61PN MS3476L08-33PN, MS3476L10-6PN, MS3476L12-10PN, MS3476L14-12PN, MS3476L16-26PN, MS3476L18-32PN, MS3476L20-41PN, MS3476L22-55PN, MS3476L24-61PN **Code Explanation:** P = Pin (Male Contact); S = Socket (Female Contact). Optional accessories include various EMI shielded backshells, cable clamps, and corrugated strain relief boots.
