M16-C091-CABLE RECEPTACLE
Category:M16-C091

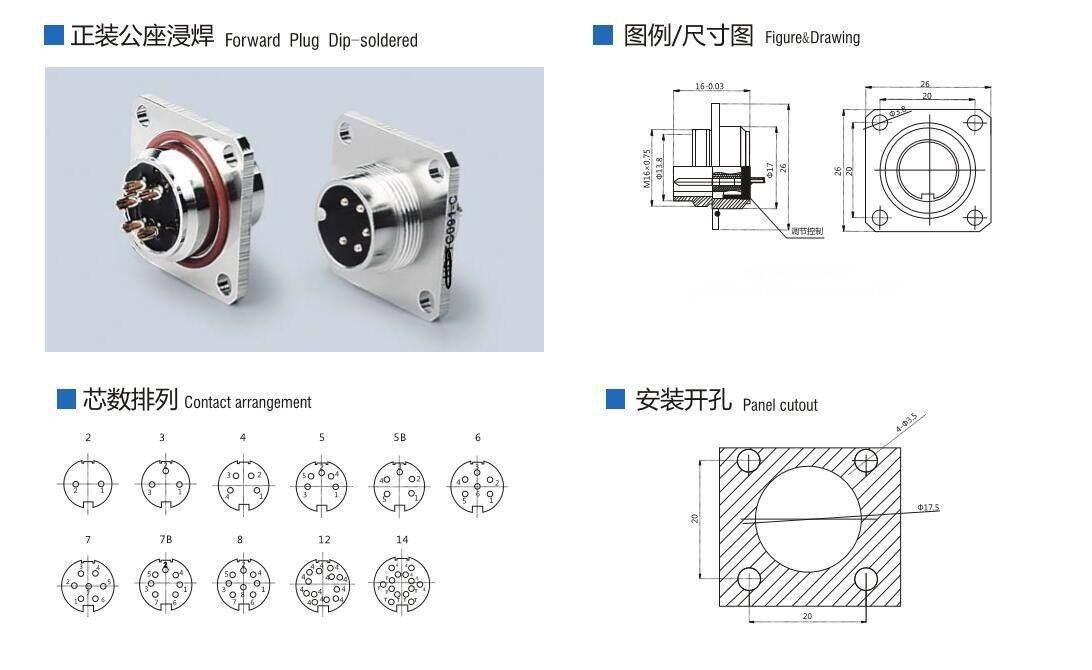

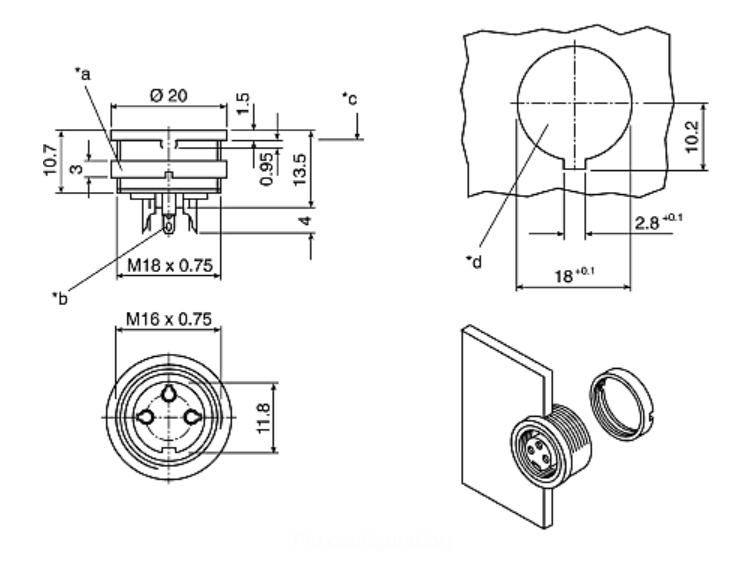

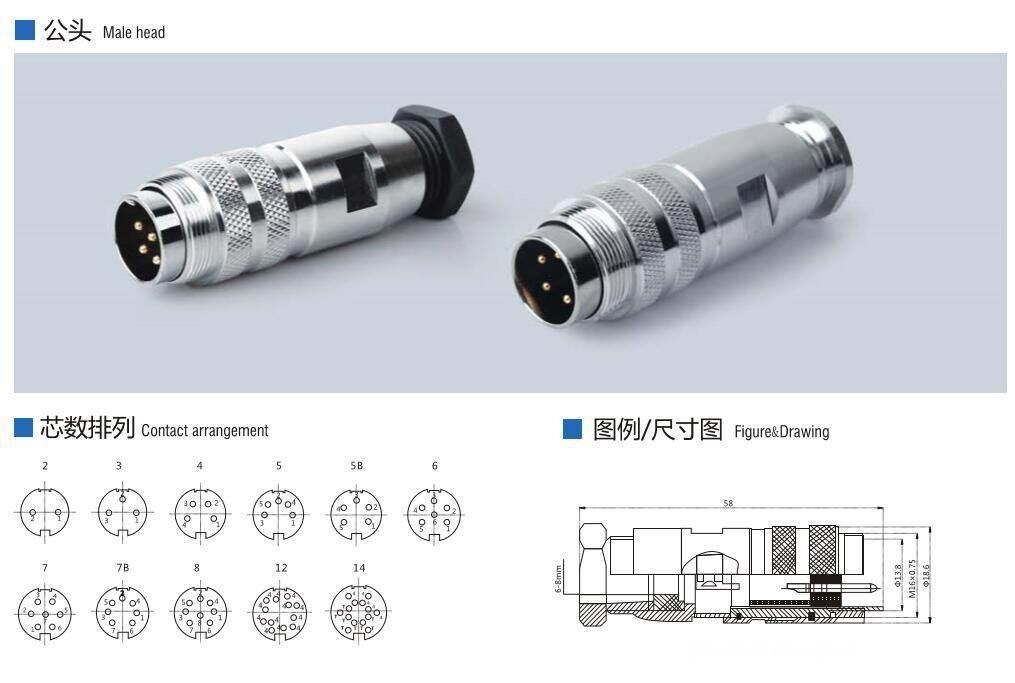

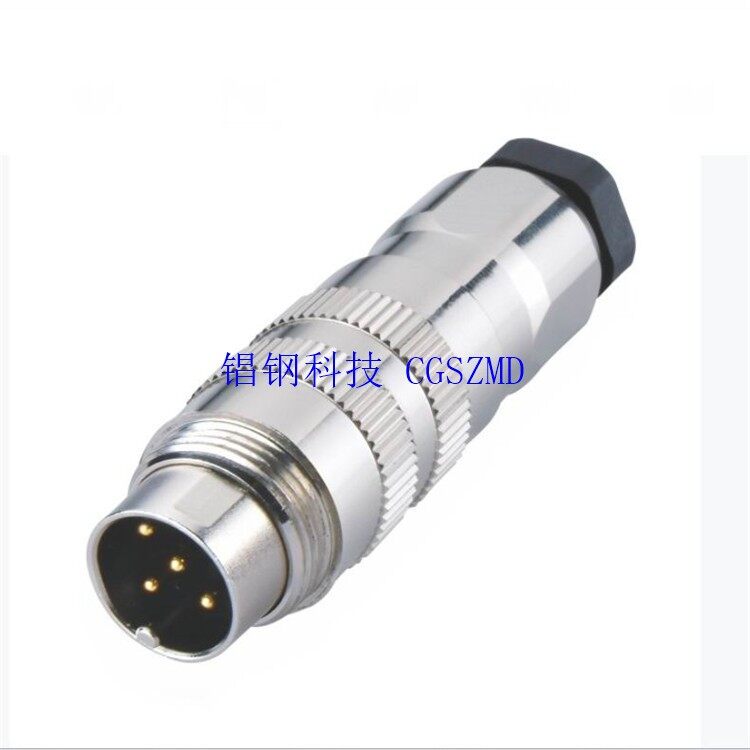

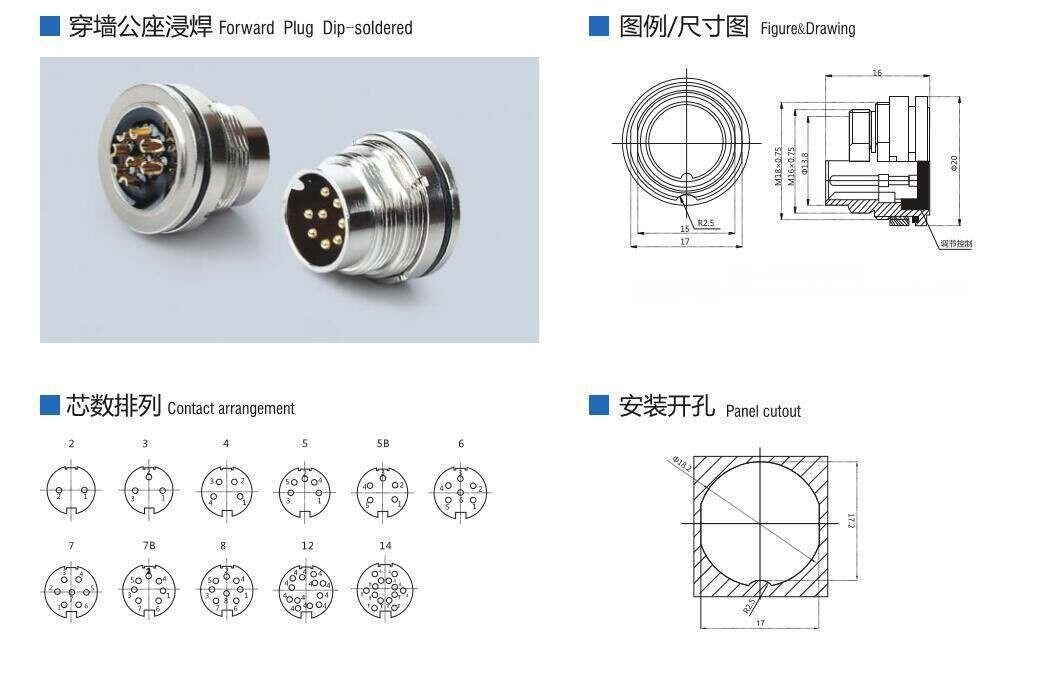

Keywords:Straight and 90° right-angle cable plugs; round-flange and square-flange panel receptacles. 3-24 contacts available with solder or crimp termination options. PG7 / PG9 for various cable outer diameters.
Details

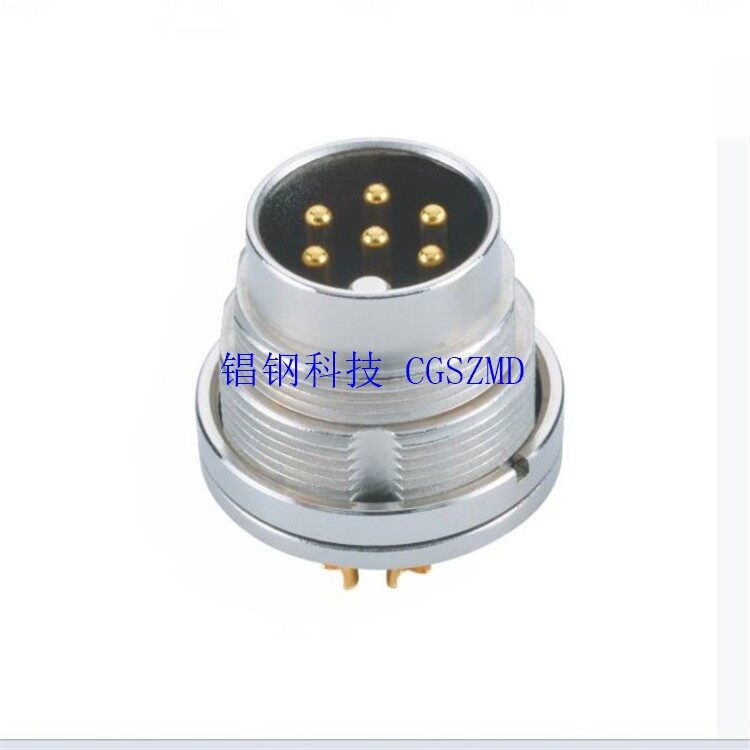

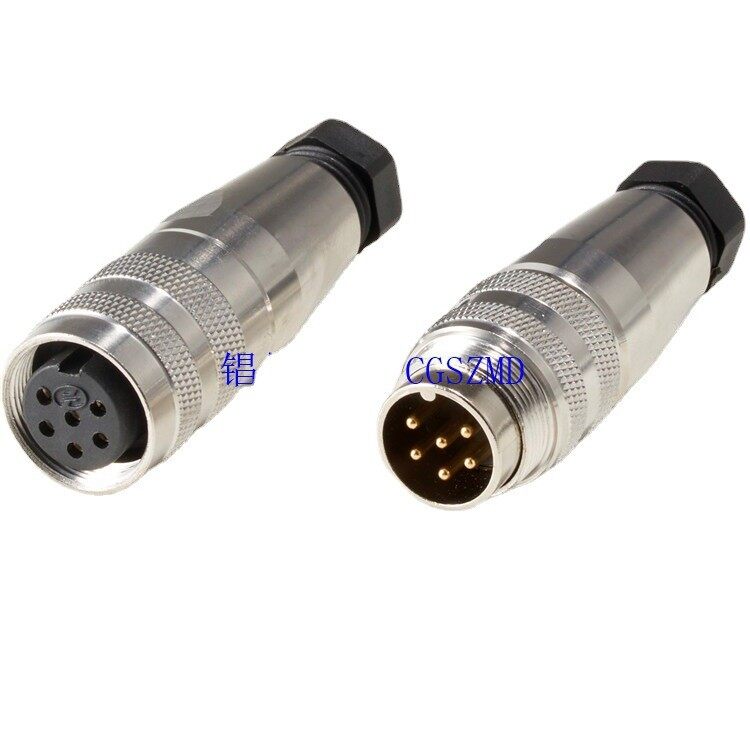

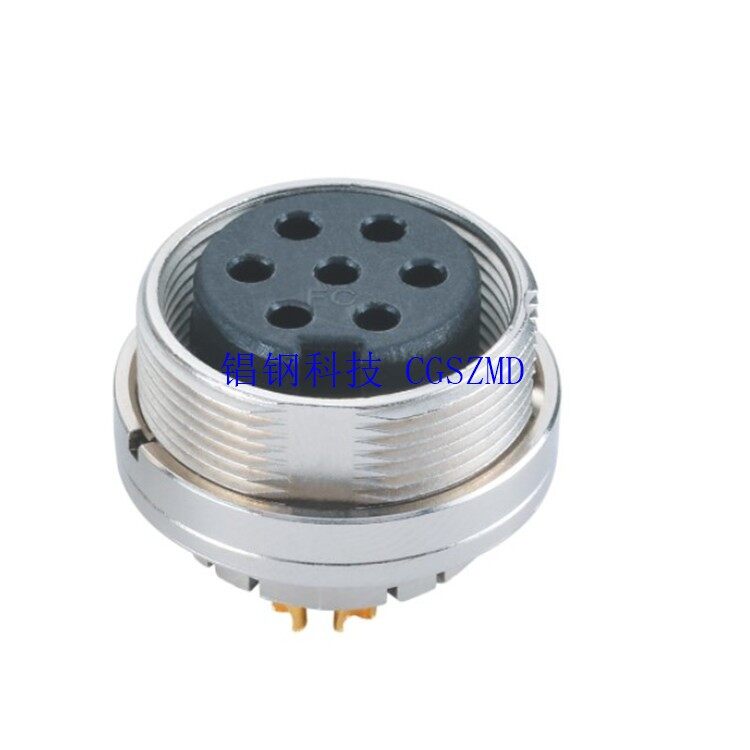

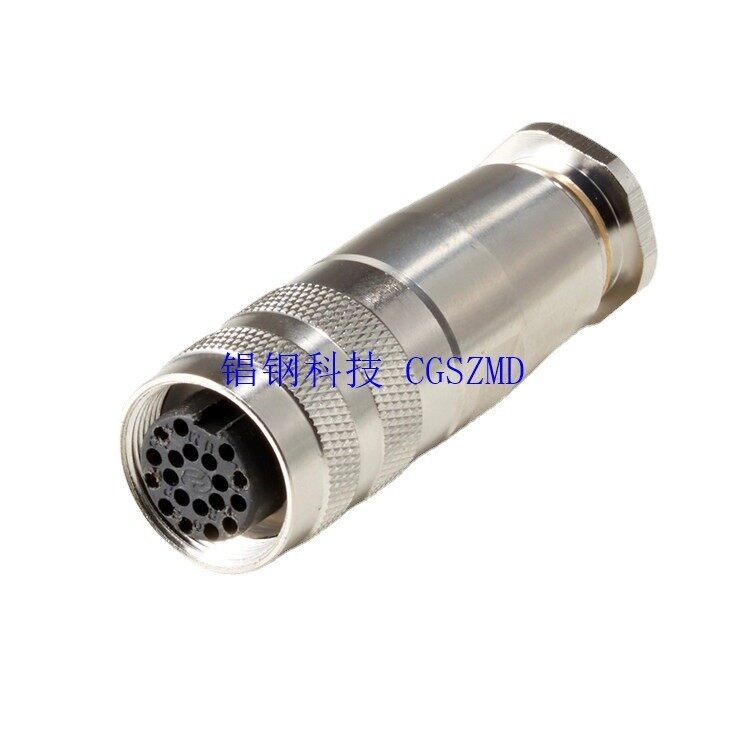

M16 C091 Series Cable Receptacles feature a nickel-plated zinc alloy housing with threaded locking and IP67 protection rating. Designed for cable-to-cable connections, these receptacles pair with matching cable plugs. Available in 3- to 12-pin configurations, they support rated currents of 7A/10A and a rated voltage of 250V.
Parameters:

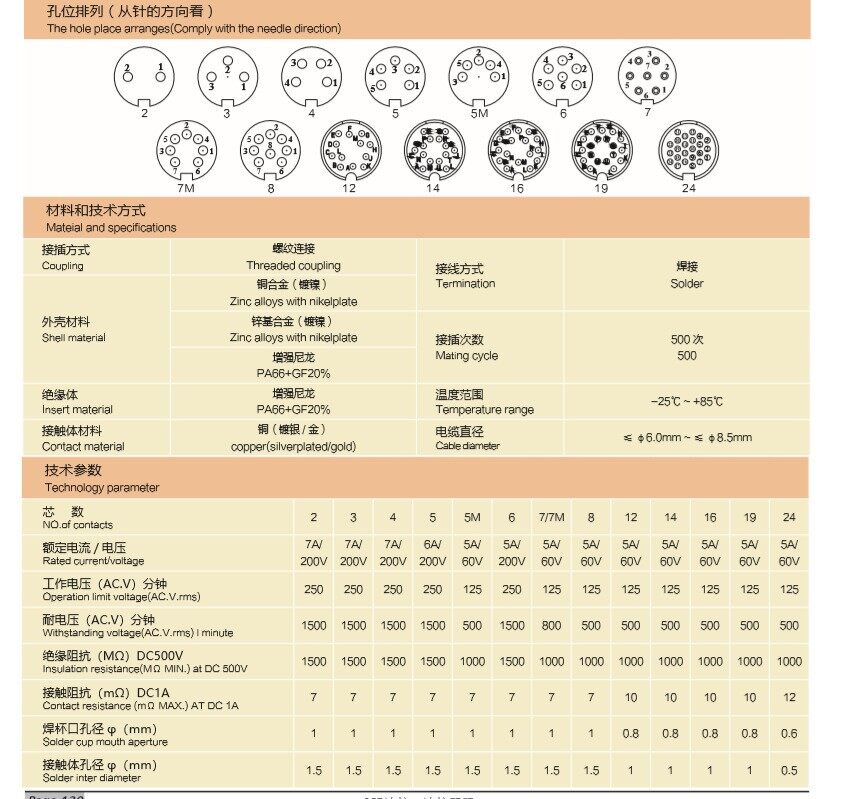

Materials and Technical Specifications; Mechanical and Electrical Performance:
| Series | M16 C091 | Locking method | Thread locking |
| Housing Material | Nickel-plated zinc alloy | Locking method | Thread locking |
| Locking method | Thread locking | Rated Voltage | 250V |
| Protection Rating | IP7 | Rated Voltage | 250V |
| Rated Voltage | 250V | Operating Temperature | -25°C~+85°C |
| Rated Current | 7A/10A | Operating Temperature | -25°C~+85°C |
| Operating Temperature | -25°C~+85°C | Application Areas | Industrial automation, instrumentation, sensors |
| Contact | Gold plating on copper alloy | Application Areas | Industrial automation, instrumentation, sensors |
| Application Areas | Industrial automation, instrumentation, sensors |
