GX12
Category:GX12
Keywords:M12 sensor harnesses, M16 industrial equipment harnesses, 5015 military-grade circular connector harnesses, SF bayonet quick-connect waterproof harnesses, and WS snap-lock waterproof harnesses—five core product lines. All feature industrial-grade PUR/PVC jacketed cables with oil and drag resistance, IP67 water protection rating, and an operating temperature range of -40°C to +85°C.
Details

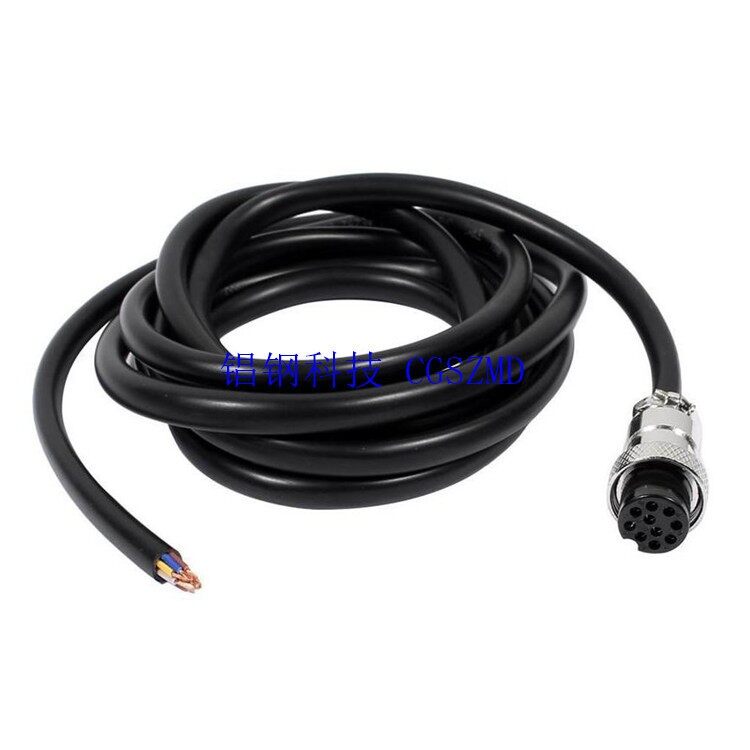

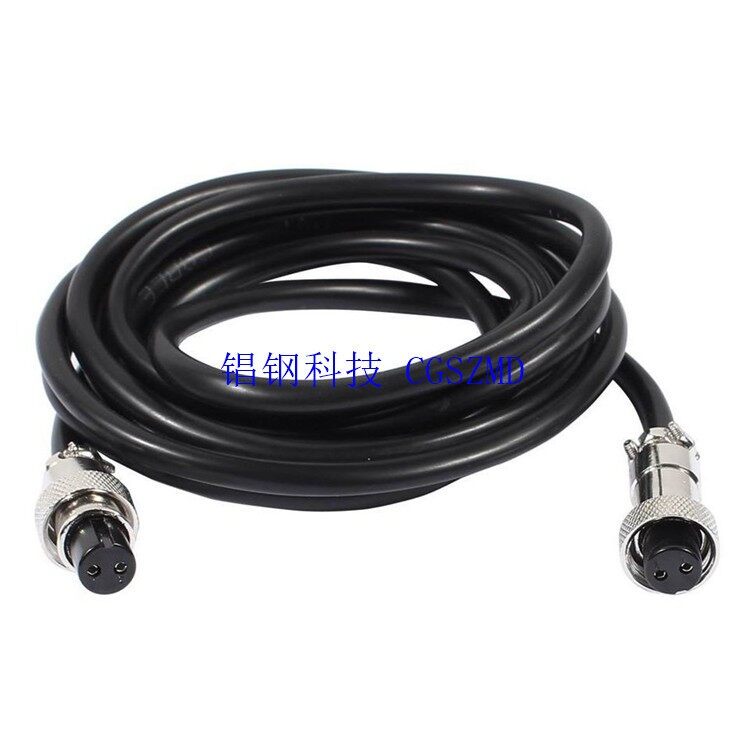

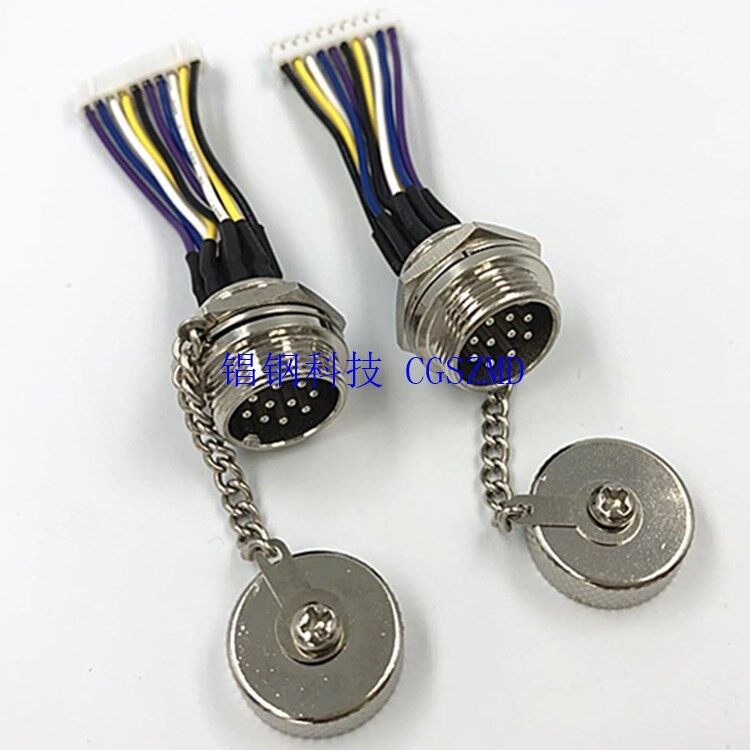

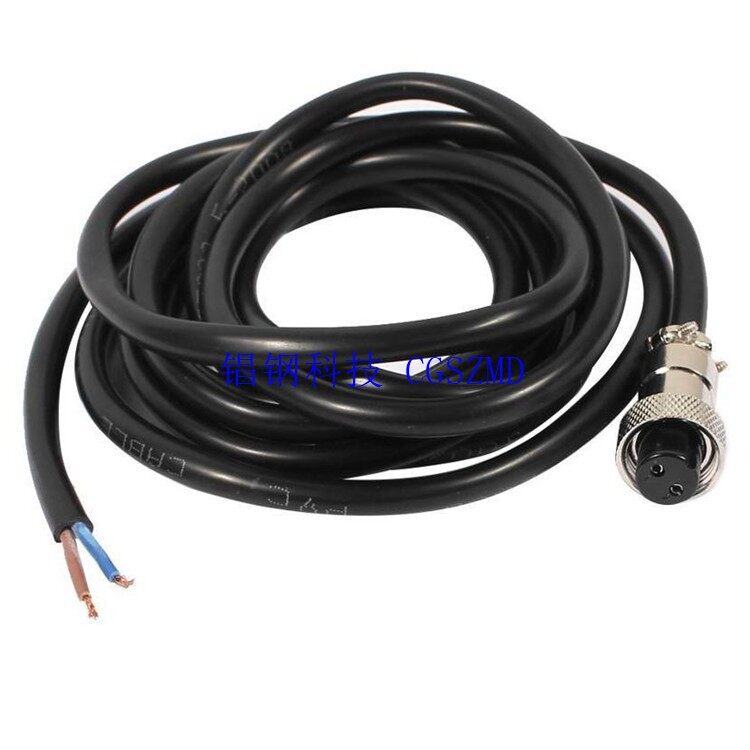

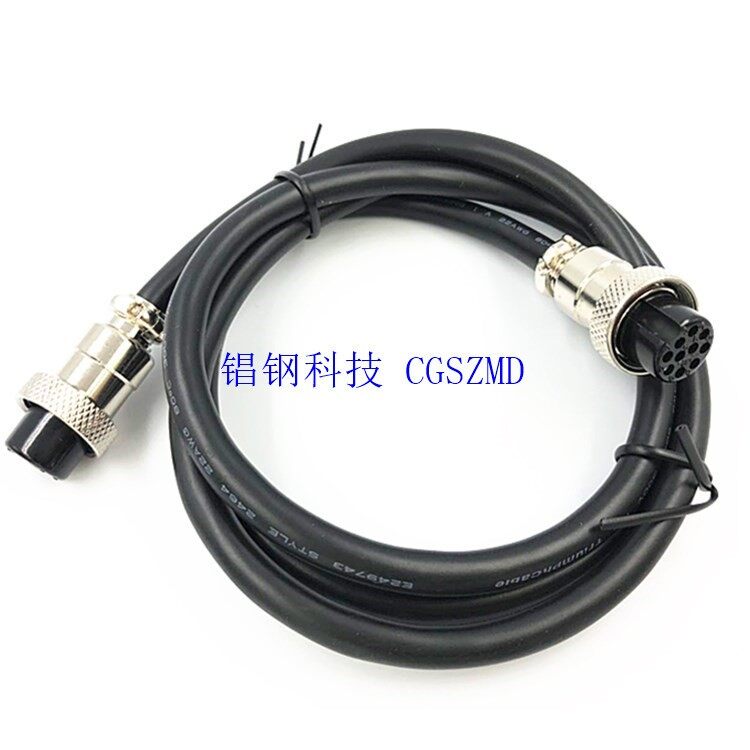

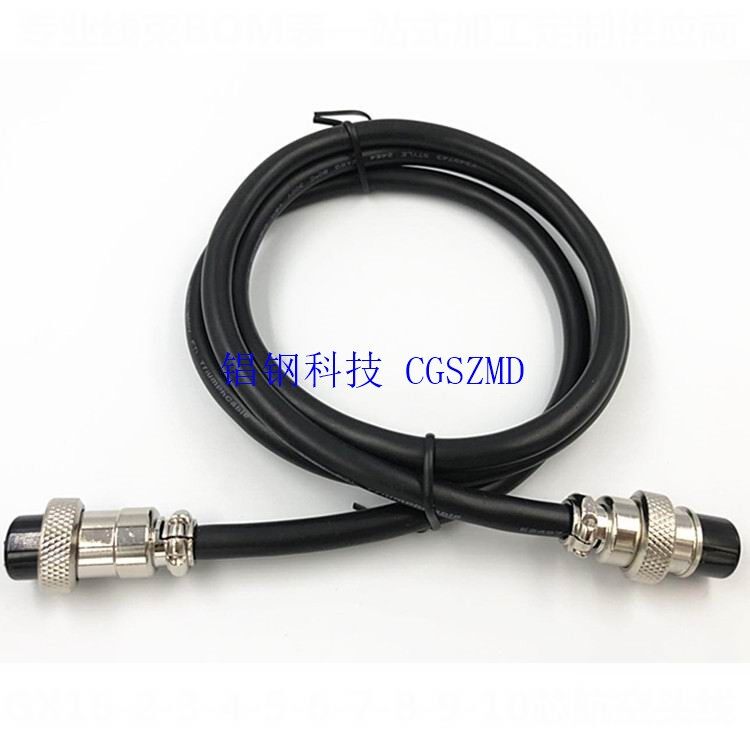

GX12 Series Circular Connector Harnesses feature 3C GB-standard RVV-certified cables, available in 2-pin to 7-pin configurations. Cable outer diameter is approximately 4.8-5.5mm, with an operating temperature range of -15°C to 80°C and rated voltage of 300V/500V. Its compact design makes it ideal for industrial applications with space constraints.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Product Model | GX12-2 pin, GX12-3 pin, GX12-4 pin, GX12-3 pin (5 pin), GX12-6 pin, GX12-7 pin | Use wire | 2 Core 0.5 Sqmm, 3 Core 0.2 Sqmm, 4 Core 0.3 Sqmm, 5 Core 0.2 Sqmm, 6 Core 0.2 Sqmm, 7 Core 0.2 Sqmm |
| Certifications | 3C National Standard RVV | Use wire | 2 core 0.5 sqmm, 3 core 0.2 sqmm, 4 core 0.3 sqmm, 5 core 0.2 sqmm, 6 core 0.2 sqmm, 7 core 0.2 sqmm |
| Use wire | 2-core 0.5 sq mm, 3-core 0.2 sq mm, 4-core 0.3 sq mm, 5-core 0.2 sq mm, 6-core 0.2 sq mm, 7-core 0.2 sq mm | Operating Temperature | -15°C~80°C |
| Cable Outer Diameter | Approx. 4.8mm,5.0mm,5.2mm,5.0mm,5.3mm,5.5mm | Carrying Temperature | -15°C~80°C |
| Operating Temperature | -15°C~80°C | Wire Color | Red/Black, Red/Black/Yellow, Red/Black/Yellow/White, Red/Black/Yellow/White/Green, Red/Black/Yellow/White/Green/Brown, Red/Black/Yellow/White/Green/Blue/Orange |
| Rated Voltage | 300V/500V | Wire Color | Red/Black, Red/Black/Yellow, Red/Black/Yellow/White, Red/Black/Yellow/White/Green, Red/Black/Yellow/White/Green/Brown, Red/Black/Yellow/White/Green/Blue/Orange |
| Wire Color | Red/Black, Red/Black/Yellow, Red/Black/Yellow/White, Red/Black/Yellow/White/Green, Red/Black/Yellow/White/Green/Brown, Red/Black/Yellow/White/Green/Blue/Orange |
