M8-D4
Category:M8
Keywords:M8 circular connector, 4-pin D-coded, IP67 rated, supports industrial Ethernet 100Mbps transmission. Ideal for PROFINET/EtherCAT cabling, 4-pin D-coded, IP67 rated, industrial Ethernet applications.
Details

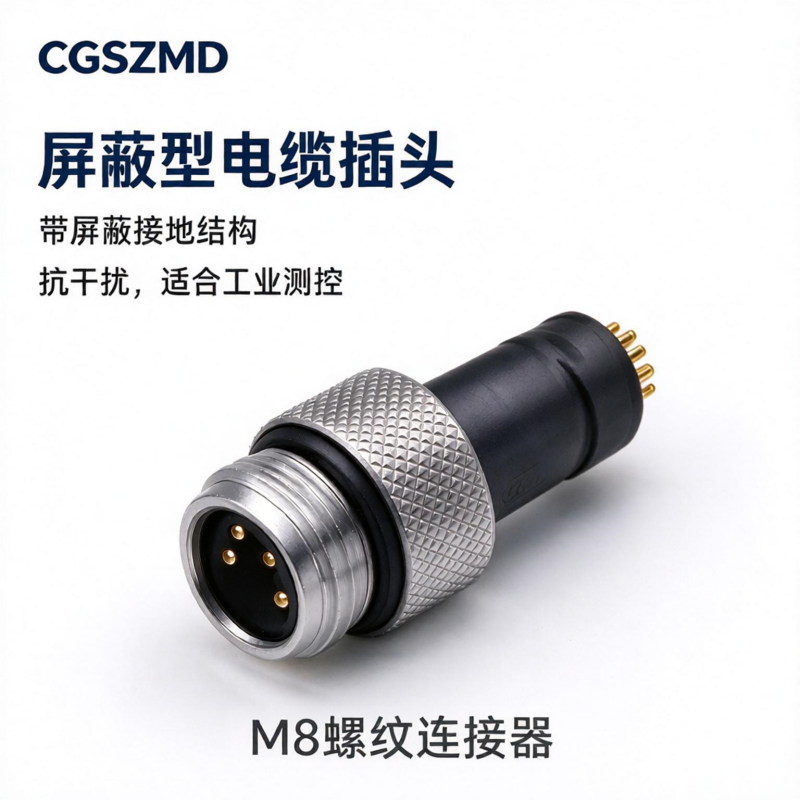

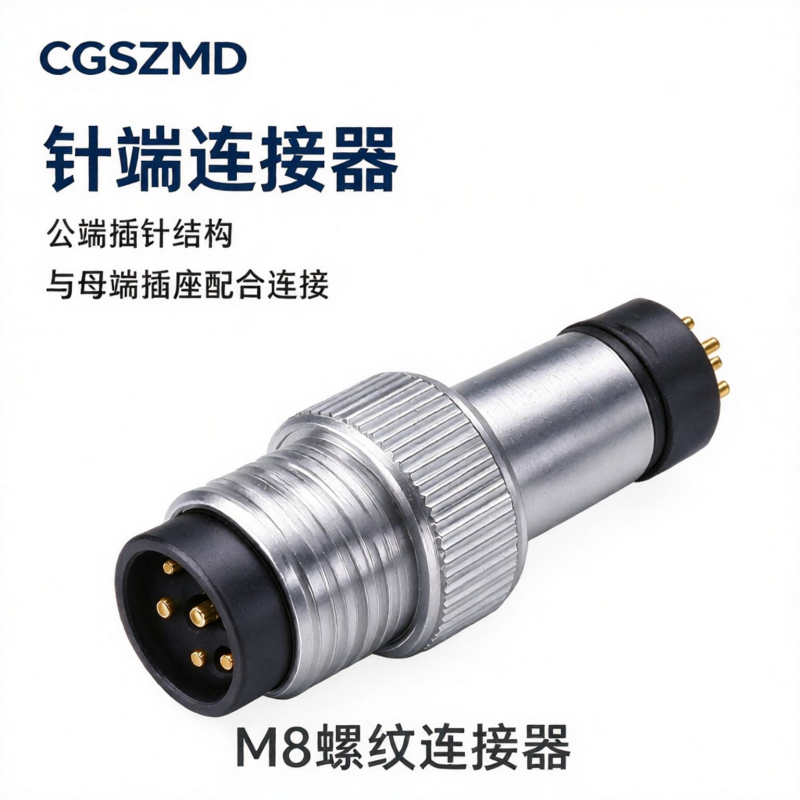

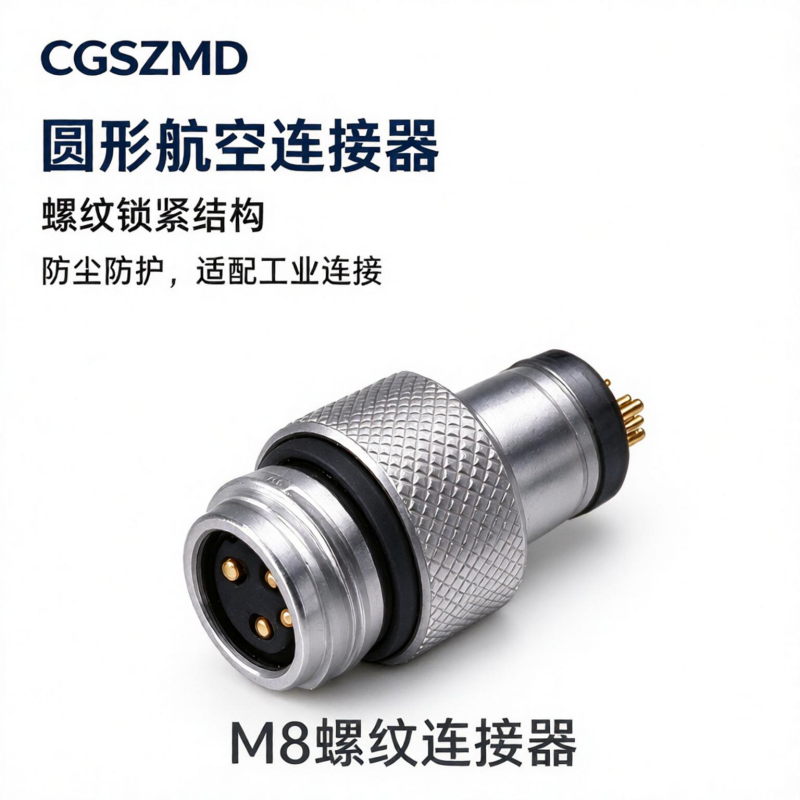

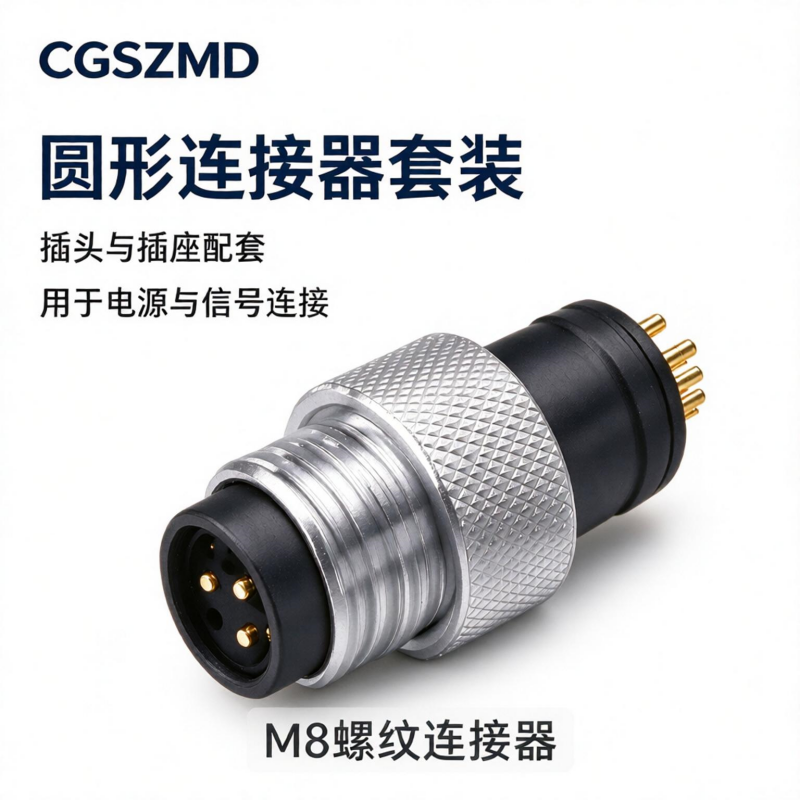

The M8-D4 threaded connector features an M8 thread interface with a 4-pin D-coded configuration and IP67 protection rating. It supports industrial Ethernet 100Mbps data transmission, making it ideal for PROFINET, EtherCAT, and other industrial network cabling scenarios.
Product Features:
• Threaded Interface: Standard M8 thread for secure and reliable connections
• Coding Configuration: D-coded with 4 pins
• Protection Rating: IP67, designed for harsh industrial environments
• Data Transmission: Supports 100Mbps industrial Ethernet
• Durability: ≥100 mating cycles for long service life
Application Scenarios:
• Industrial automation control systems
• PROFINET industrial Ethernet cabling
• EtherCAT fieldbus connections
• Sensor and actuator connections
• Robot control systems
Complete M-Series Connector Models:
• M5 Series: M5-3P, M5-4P
• M8 Series: M8-3P, M8-4P, M8-D4
• M12 Series: M12-4P, M12-5P, M12-8P, M12-D4, M12-X
• M17 Series: M17-4P, M17-8P
• M23 Series: M23-6P, M23-12P, M23-17P
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Core Count | 4 | Rated Current | 4A |
| Code | D | Rated Current | 4A |
| Rated Current | 4A | Contact Resistance | ≤8 mΩ |
| Rated Voltage | 250V | Contact Resistance | ≤8 mΩ |
| Contact Resistance | ≤8 mΩ | Operating Temperature | -25°C~+85°C |
| Insulation Resistance | ≥100 MΩ | Operating Temperature | -25°C~+85°C |
| Operating Temperature | -25°C~+85°C | Connection Type | Threaded |
| Protection Rating | IP7 | Connection Type | Threaded |
| Connection Type | Threaded | Insertion/Extraction Cycles | ≥100 times |
| Data transfer | 100 Mbps | Insertion/Extraction Cycles | ≥100 times |
| Insertion/Extraction Cycles | ≥100 times |
