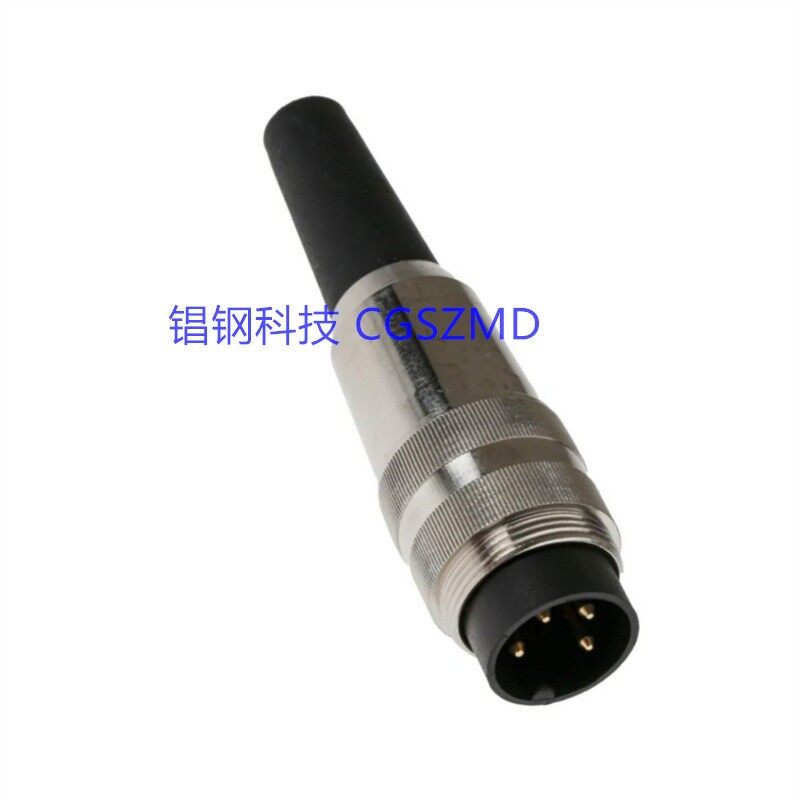

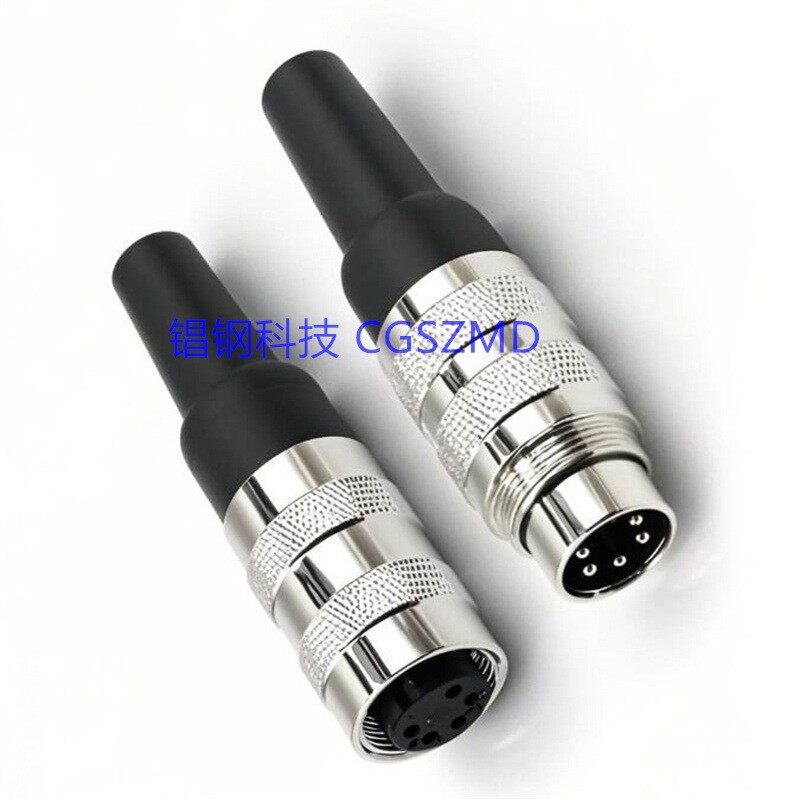

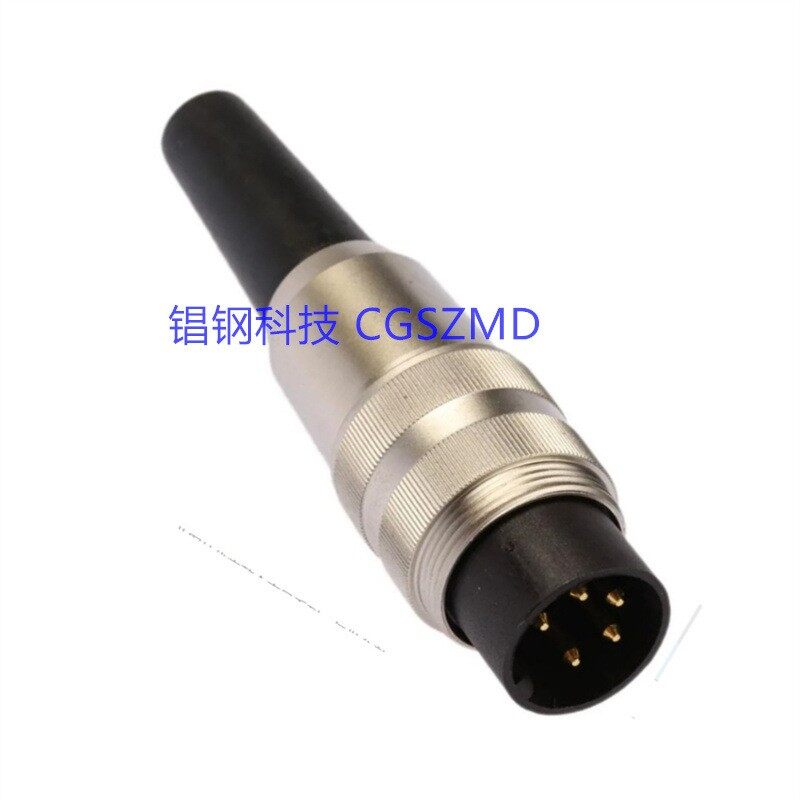

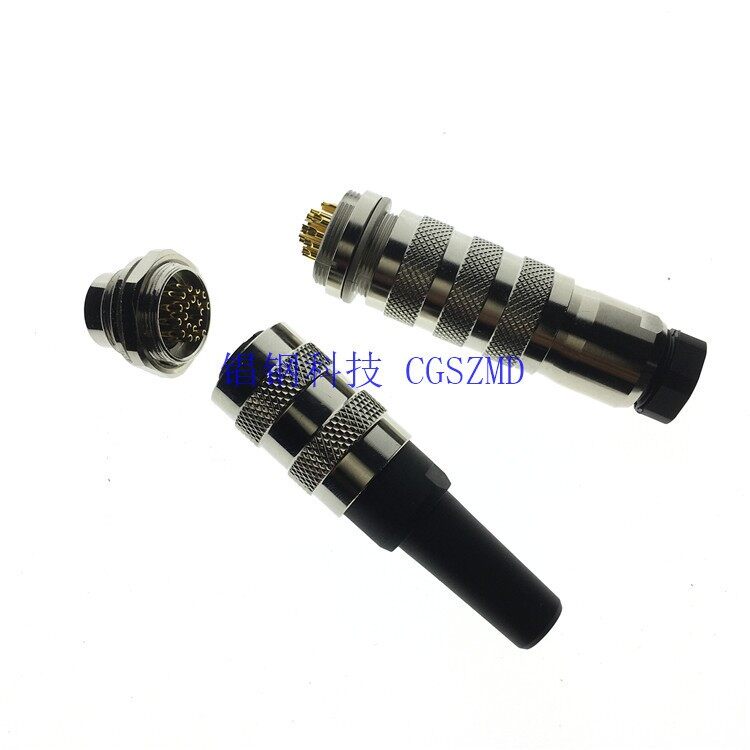

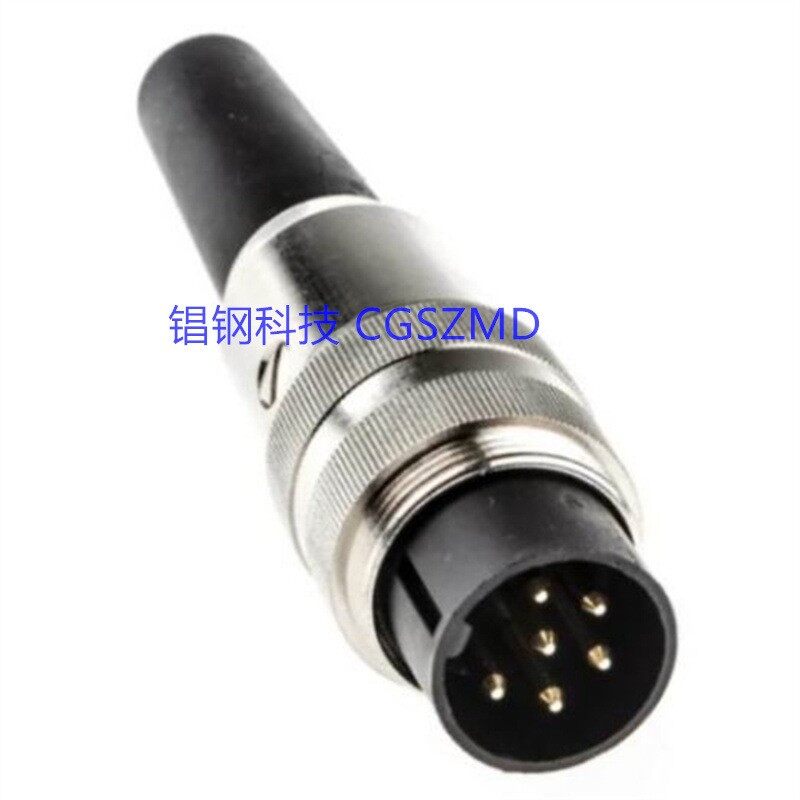

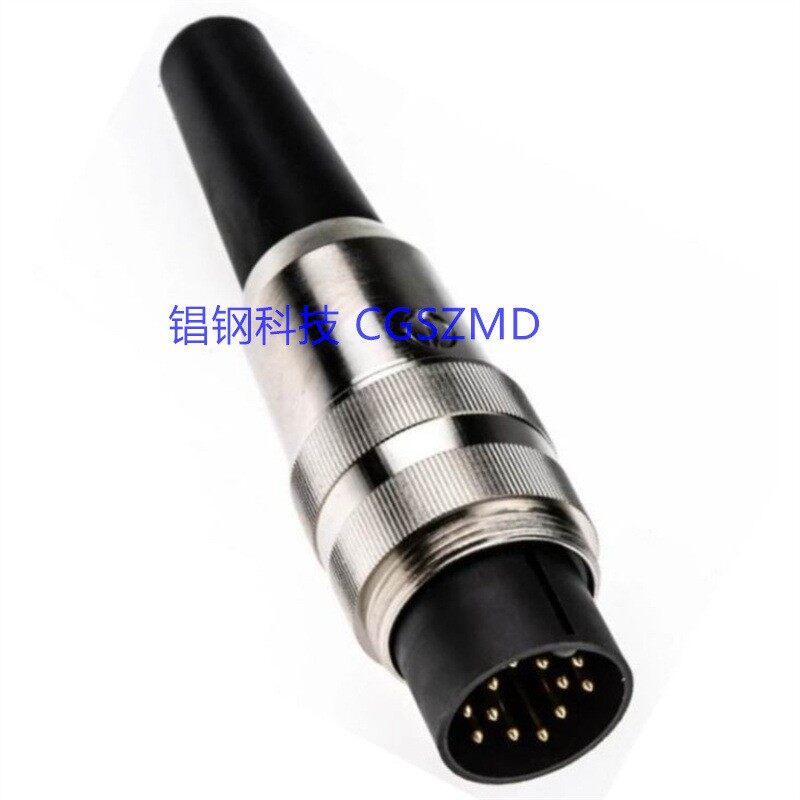

M16-C091-PLUG
Category:M16-C091
Keywords:Straight and 90° angled cable plugs, circular and square flange panel receptacles; available with 3 to 24 contacts; supports soldering or crimping termination; PG7/PG9 size accommodates various cable outer diameters.
Details
M16 C091 Series Cable Connectors feature a nickel-plated zinc alloy housing with threaded locking and IP67 protection rating. Ideal for reliable connections in industrial automation, instrumentation, and sensor applications. Available in 3 to 24 pin configurations with rated current of 7A/10A and rated voltage of 250V.
Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Series | M16 C091 | Locking method | Thread locking |
| Housing Material | Nickel-plated zinc alloy | Locking method | Thread locking |
| Locking method | Thread locking | Rated Voltage | 250V |
| Protection Rating | IP7 | Rated Voltage | 250V |
| Rated Voltage | 250V | Operating Temperature | -25°C~+85°C |
| Rated Current | 7A/10A | Operating Temperature | -25°C~+85°C |
| Operating Temperature | -25°C~+85°C | Application Areas | Industrial automation, instrumentation, sensors |
| Contact | Gold plating on copper alloy | Application Areas | Industrial automation, instrumentation, sensors |
| Application Areas | Industrial automation, instrumentation, sensors |
