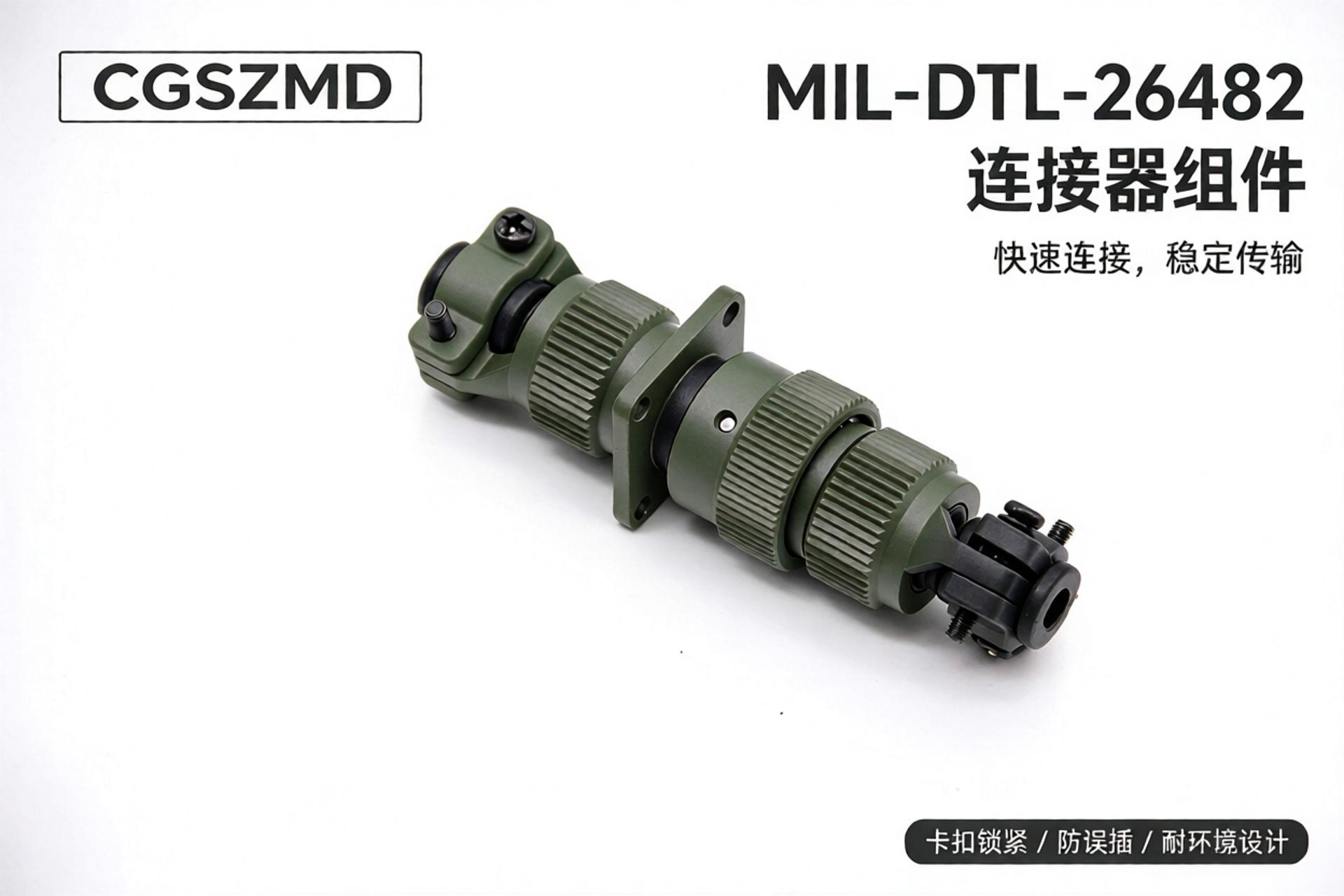

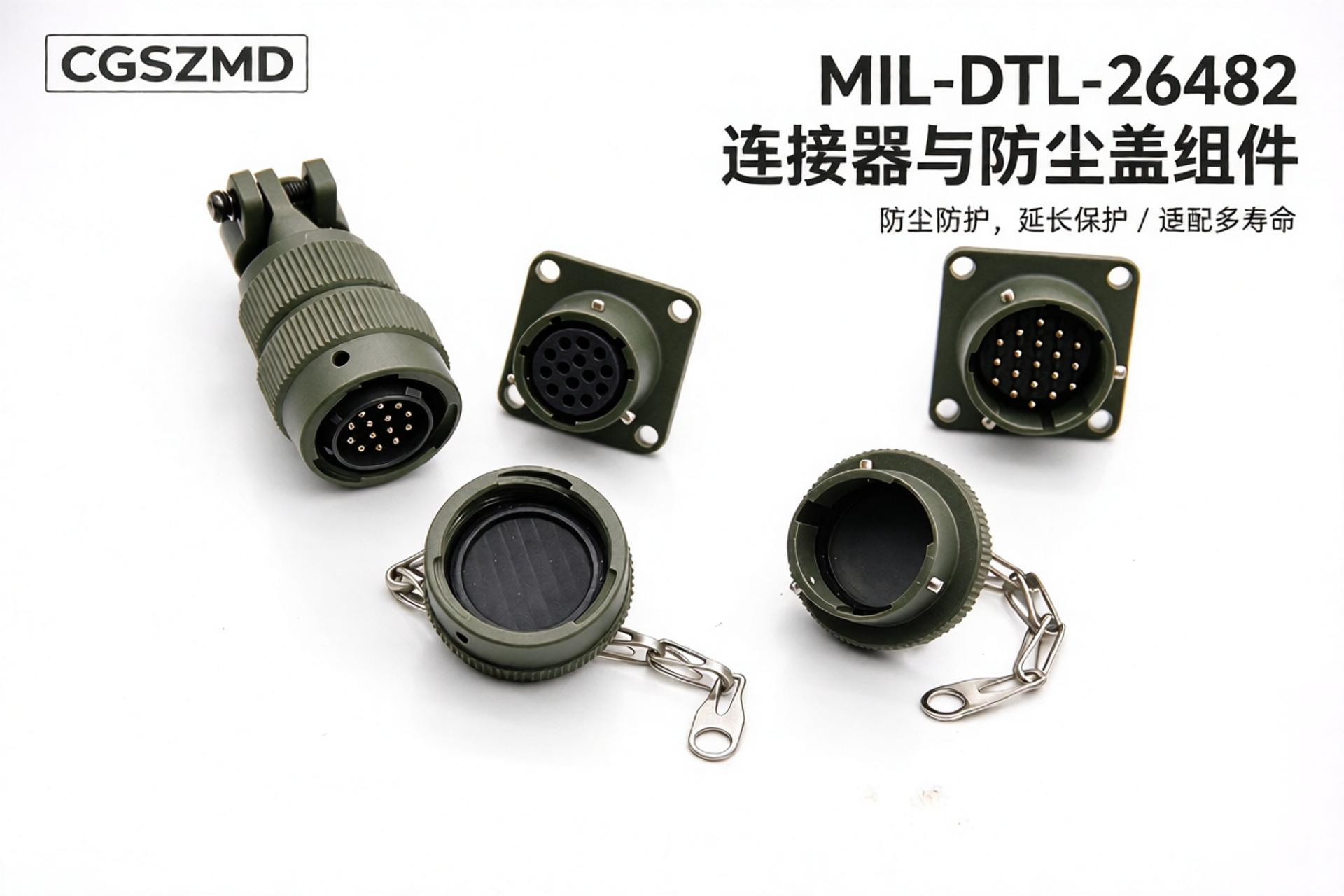

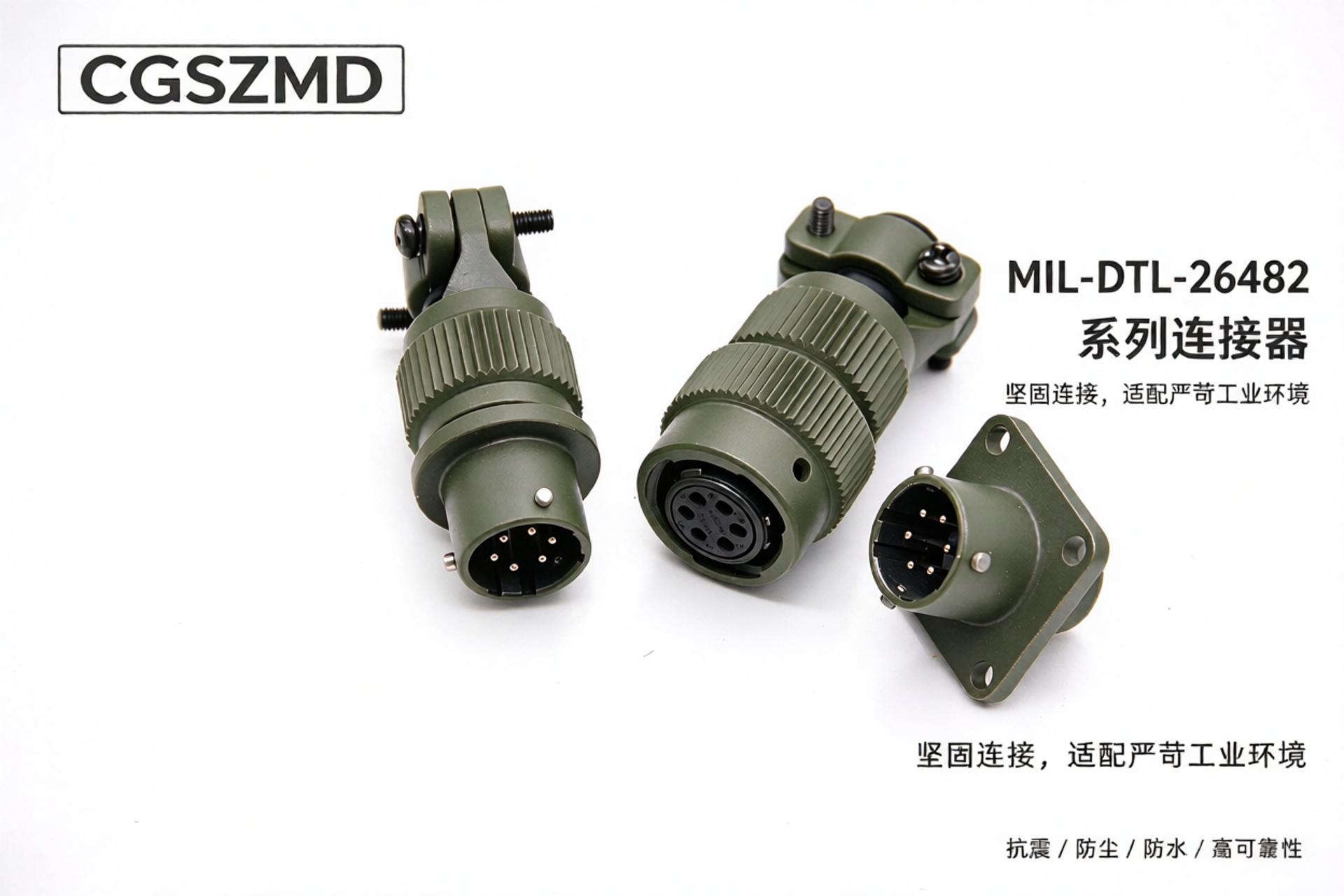

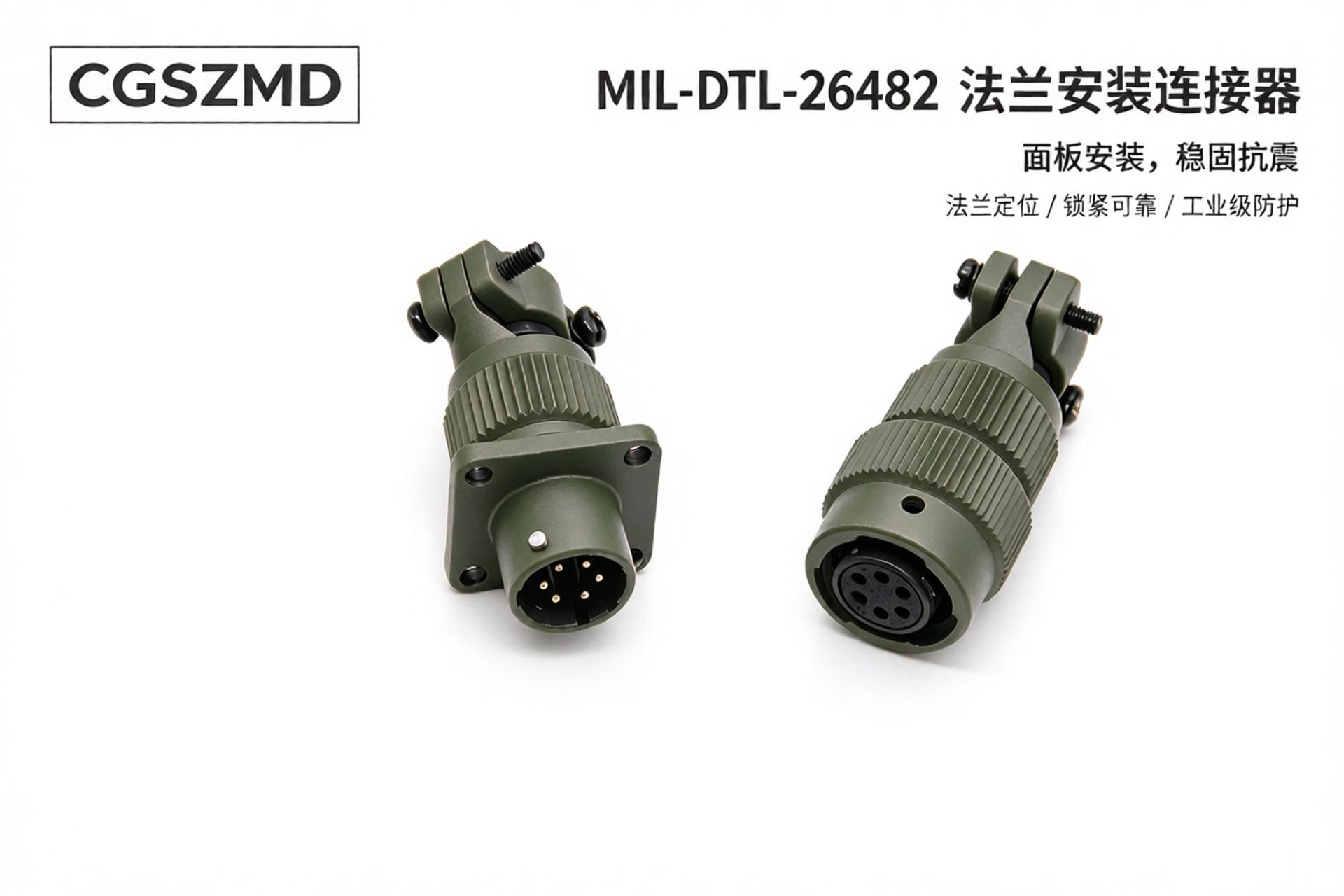

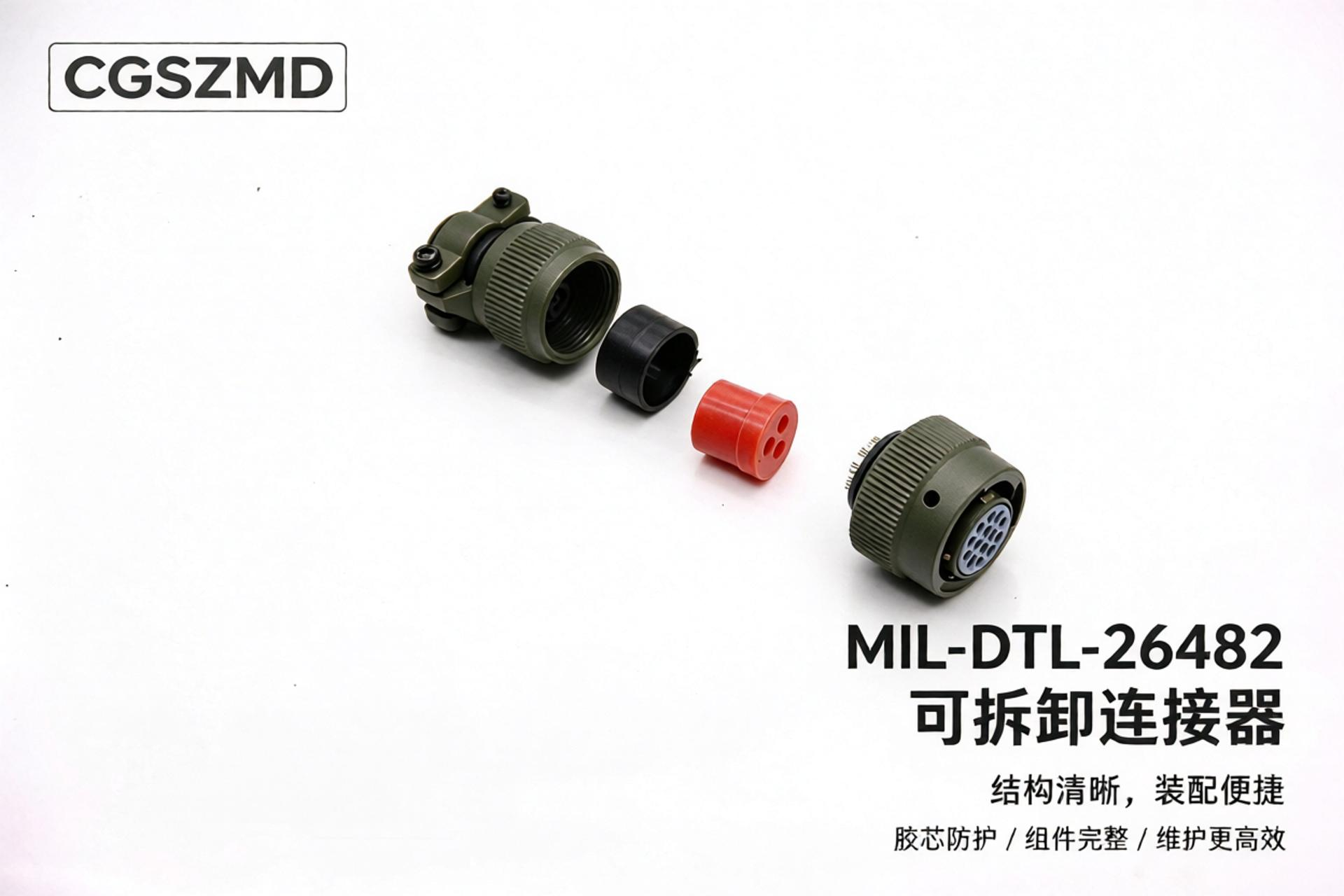

MIL-DTL-26482 (formerly MIL-C-26482) compact military circular connectors, available in Series I and Series II. These lightweight bayonet-style connectors are fully interchangeable with domestic and international equivalents of the same specification. Our factory supplies MIL‑DTL-26482 (GJB598) military standard circular aviation connectors, including Series I (solder) and Series II (crimp-release). Product range includes MS3110 panel-mount receptacles, MS3112 flange-mounted receptacles, MIL-DTL-26482 nut-locking receptacles, MS3116 straight plugs, and MS3119 bulkhead receptacles. Shell sizes 8# through 24#, pin counts from 2 to 61, with matching male/female pin/socket configurations. Supports solder, crimp, and PCB termination options. Available with RFI shielding and IP67 sealing. Housing materials include nickel-plated aluminum alloy or cadmium-plated olive drab. Operating temperature: ‑55℃ to 125℃. Compatible with PT and KPT series. Ideal for high-reliability signal and power connections in defense, aerospace, rail transit, and industrial equipment. Supports sample testing, bulk orders, and custom cable assembly. Widely used for signal and power interconnection in airborne and vehicular small-to-medium equipment. Series I: Basic bayonet locking mechanism. Series II: Enhanced version featuring standard scoop-proof protection for blind mating, preventing pin damage during insertion. Shell specifications: 9 sizes (08#, 10#, 12#, 14#, 16#, 18#, 20#, 22#, 24#). Mounting types: Bulkhead flange receptacles, nut-locking receptacles, straight plugs, and 90° angled plugs. Housing materials: High-strength aluminum alloy, stainless steel, or composite materials. Surface treatments: Cadmium-plated olive drab, electroless nickel, black zinc-nickel passivation, or stainless steel passivation. Features salt spray resistance, vibration resistance, and shock resistance. Multi-layer sealing in fully mated state provides dust, moisture, and oil resistance. Built-in multi-key anti-mate structure prevents incorrect mating between shells. Flexible contact arrangements support power, analog signals, differential signals, and coaxial mixtures. Applications: Airborne equipment, UAVs, vehicle-mounted military electronics, radar subsystems, rail transit control units, high-end industrial equipment, measurement instruments, and marine systems. Fully compatible with major Western brands. ⚠️ Important Note: MS3100/MS3106/MS3108 belong to the MIL-DTL-5015 threaded series and are not part of 26482. The following listings cover only native MIL-DTL-26482 standard models. Mainstream Shell Models (MIL-DTL-26482 Standard System): **Series I (Basic Bayonet, No Scoop-Proof)** MS3110 (Square Flange Bulkhead Receptacle), MS3111 (Nut-Locking Receptacle), MS3112 (Straight Plug), MS3116 (90° Angled Plug) MS3110E08-33PN, MS3110E10-6PN, MS3110E12-10PN, MS3110E14-12PN, MS3110E16-26PN, MS3110E18-32PN, MS3110E20-41PN, MS3110E22-55PN, MS3110E24-61PN MS3111E08-33SN, MS3111E10-6SN, MS3111E12-10SN, MS3111E14-12SN, MS3111E16-26SN, MS3111E18-32SN, MS3111E20-41SN, MS3111E22-55SN, MS3111E24-61SN MS3112E08-33PN, MS3112E10-6PN, MS3112E12-10PN, MS3112E14-12PN, MS3112E16-26PN, MS3112E18-32PN, MS3112E20-41PN, MS3112E22-55PN, MS3112E24-61PN MS3116E08-33PN, MS3116E10-6PN, MS3116E12-10PN, MS3116E14-12PN, MS3116E16-26PN, MS3116E18-32PN, MS3116E20-41PN, MS3116E22-55PN, MS3116E24-61PN **Series II (Scoop-Proof Bayonet, Mainstream Upgrade)** MS3470 (Square Flange Bulkhead Receptacle), MS3471 (Nut-Locking Receptacle), MS3472 (Straight Plug), MS3476 (90° Angled Plug) MS3470L08-33PN, MS3470L10-6PN, MS3470L12-10PN, MS3470L14-12PN, MS3470L16-26PN, MS3470L18-32PN, MS3470L20-41PN, MS3470L22-55PN, MS3470L24-61PN MS3471L08-33SN, MS3471L10-6SN, MS3471L12-10SN, MS3471L14-12SN, MS3471L16-26SN, MS3471L18-32SN, MS3471L20-41SN, MS3471L22-55SN, MS3471L24-61SN MS3472L08-33PN, MS3472L10-6PN, MS3472L12-10PN, MS3472L14-12PN, MS3472L16-26PN, MS3472L18-32PN, MS3472L20-41PN, MS3472L22-55PN, MS3472L24-61PN MS3476L08-33PN, MS3476L10-6PN, MS3476L12-10PN, MS3476L14-12PN, MS3476L16-26PN, MS3476L18-32PN, MS3476L20-41PN, MS3476L22-55PN, MS3476L24-61PN Code Explanation: P = Pin (Male Contact), S = Socket (Female Contact). Rear sections can be paired with various EMI shielded backshells, cable clamps, and flexible conduit covers.
