HA Series Heavy-Duty Receptacles
Category:HA Series
Keywords:Thermoplastic material, UL94 V-4 flame retardant, low-count signal/power hybrid, cost-effective general-purpose, stage and performance applications
Details

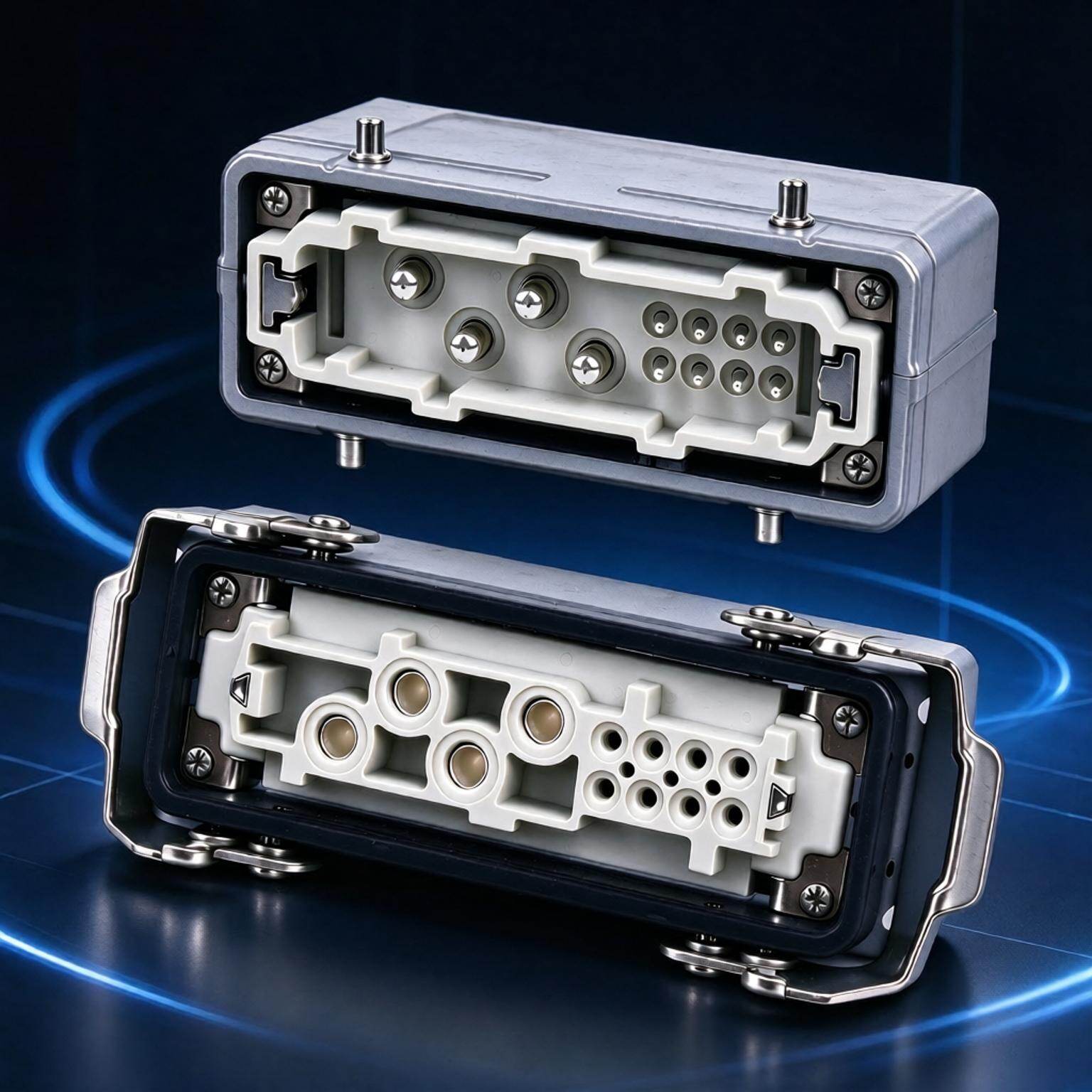

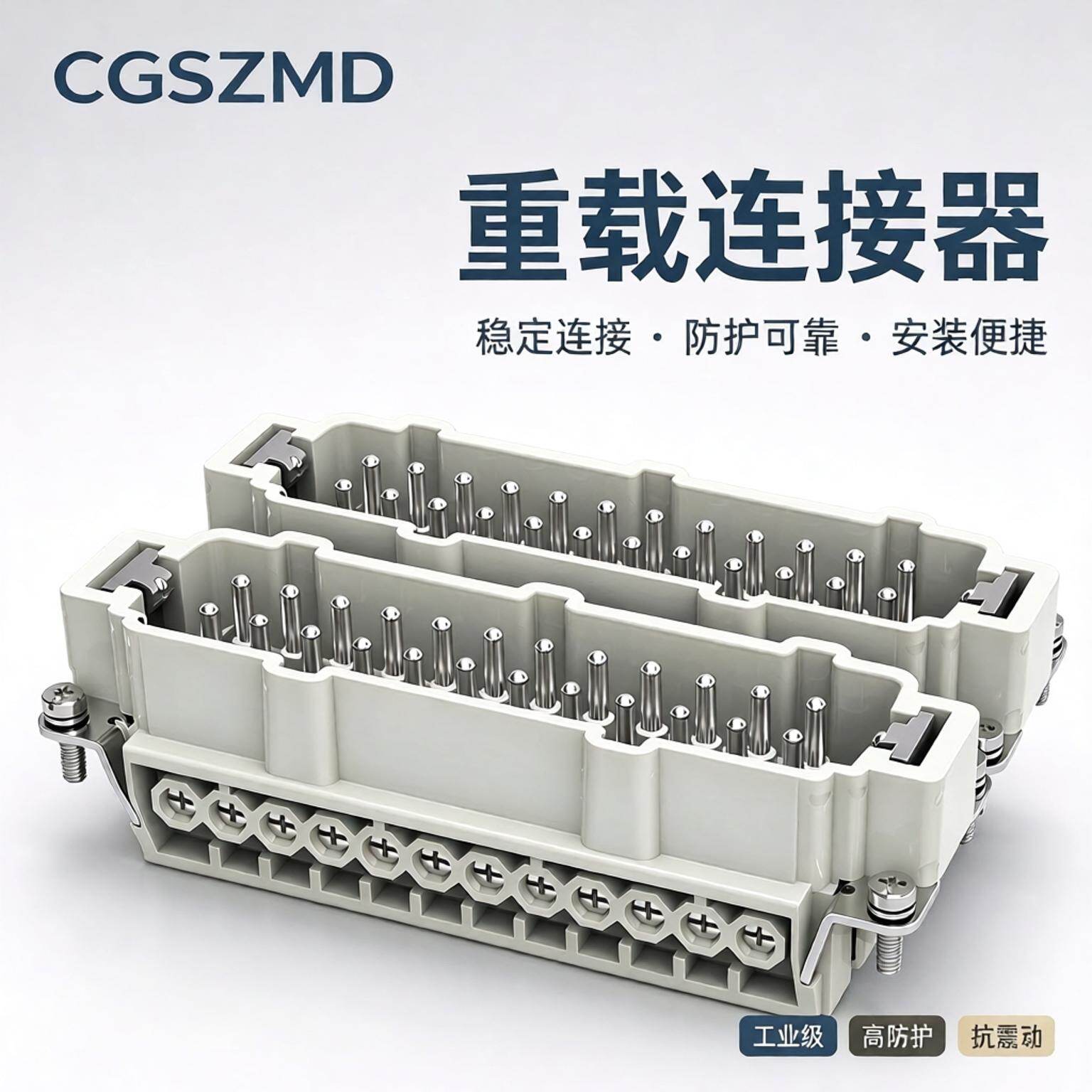

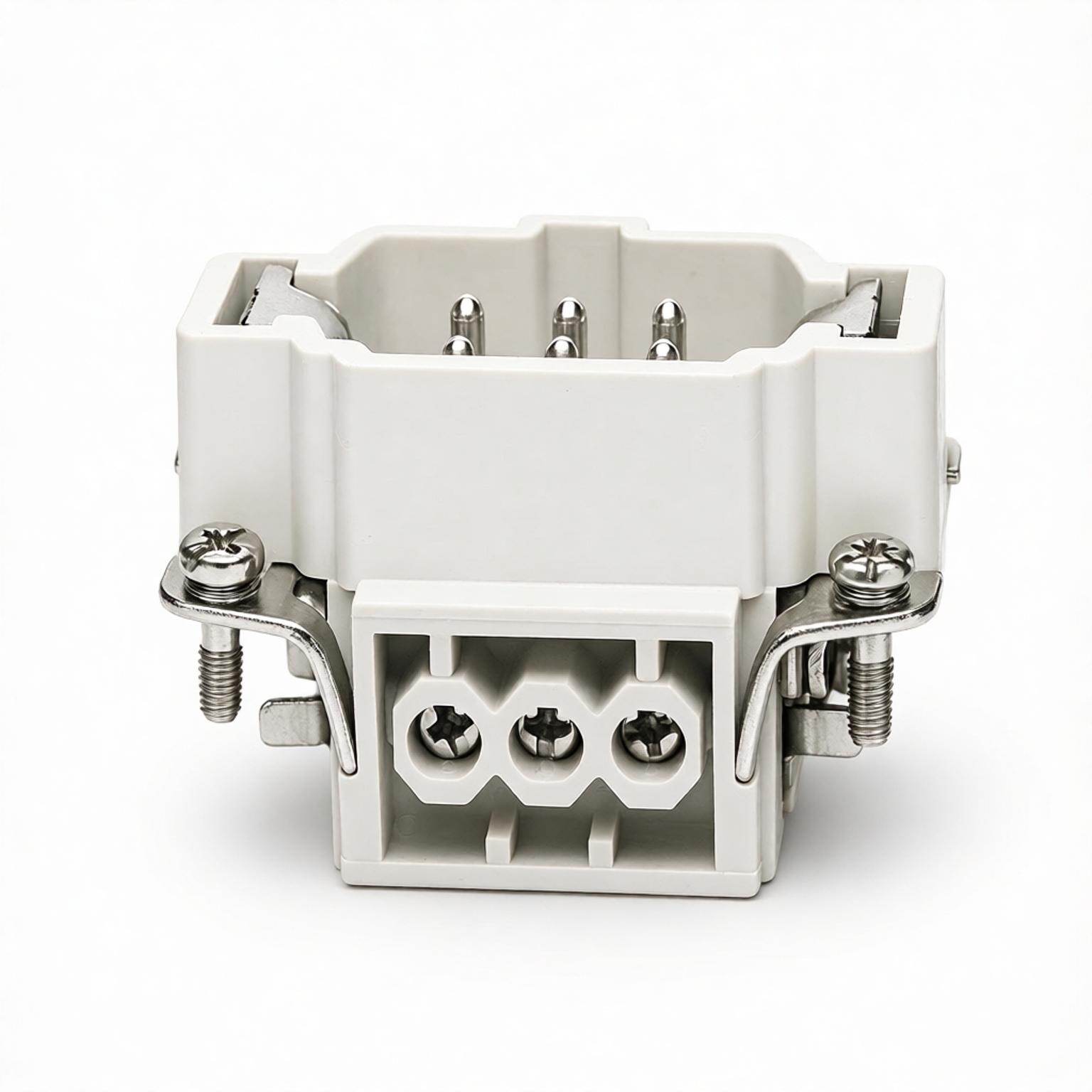

The HA series heavy-duty inserts are made from thermoplastic materials with UL94 V-0 flame-retardant ratings. Designed for low-pin-count signal and power hybrid transmission, they offer a cost-effective, general-purpose solution for heavy-duty connector inserts.
Key Features:
• Flame Rating: UL94 V-0
• Ideal For: Low-pin-count signal/power hybrid applications; general-purpose, economical use
• Modular design for easy maintenance and replacement
• Widely used in stage lighting, audio equipment, and film/TV gear within the entertainment industry
Application Scenarios:
• Hybrid signal and power transmission for stage lighting systems
• Quick connections for audio equipment
• Power supply for equipment at film and TV shooting locations
• Cabling in broadcast studios
• Power distribution for temporary live events

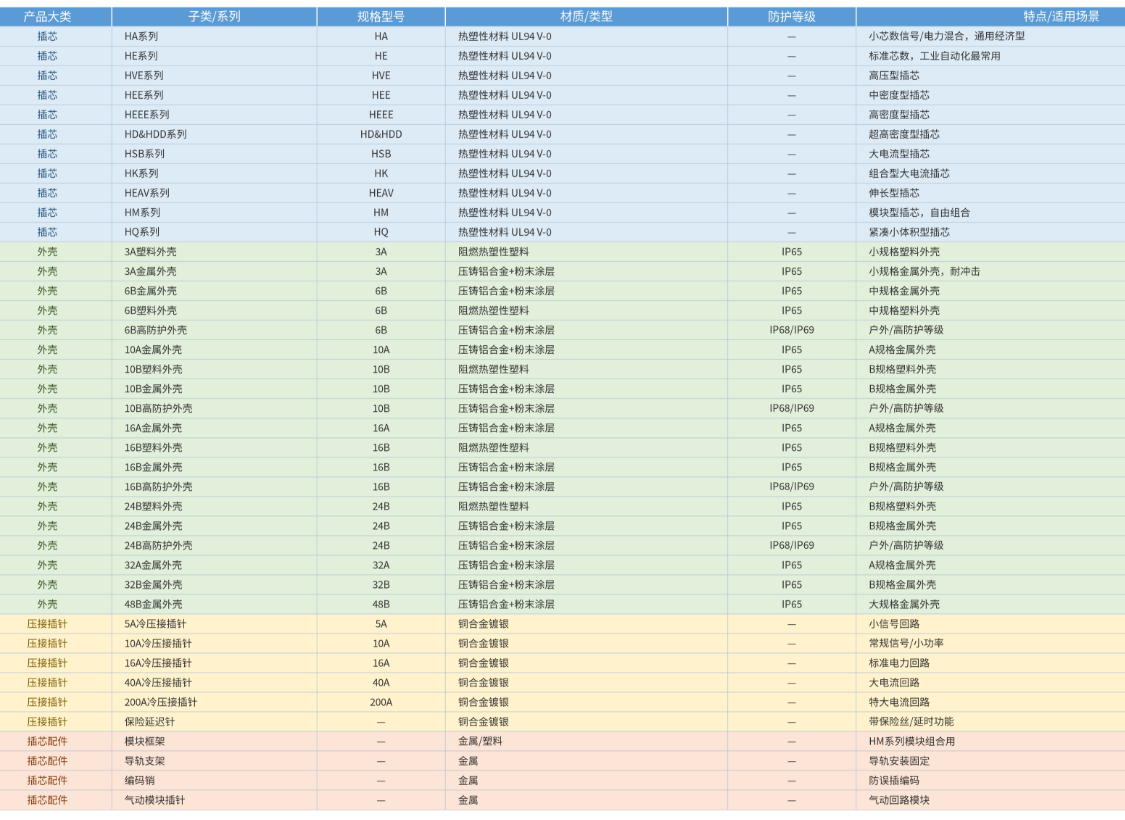

Parameters:
Materials and Technical Specifications; Mechanical and Electrical Performance:
| Materials | Thermoplastic Material UL94 V-0 | Type | core |
| Protection Rating | — | Type | core |
| Type | core | Features | Small-core signal/power hybrid, general-purpose economical |
| Series | HA Series | Features | Small-core signal/power hybrid, general-purpose economical |
| Features | Small-core signal/power hybrid, general-purpose economical | ||
| Industries | Stage Performance & Film Equipment |
